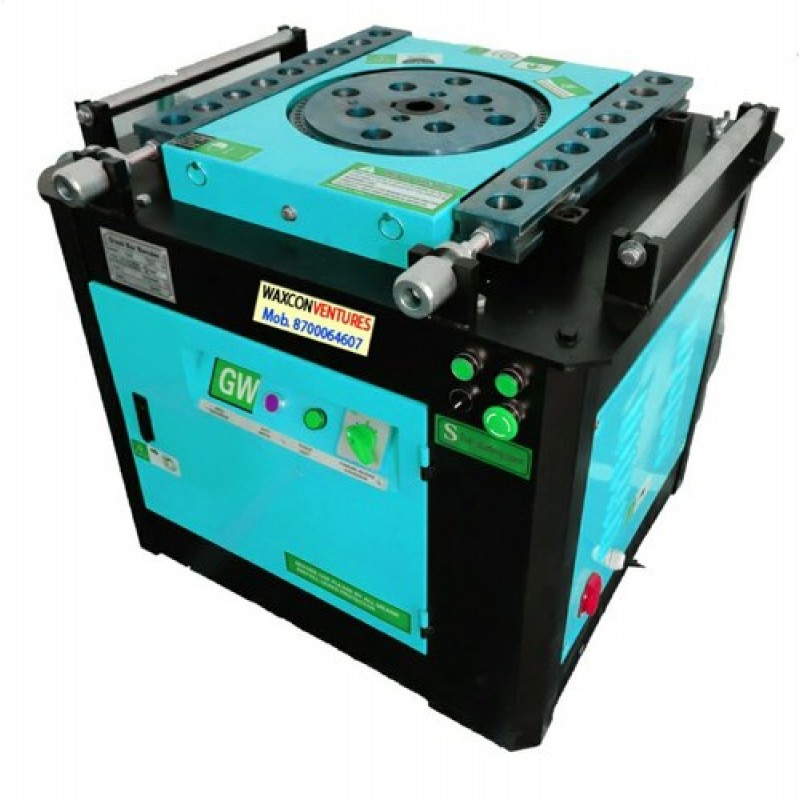

Automatic TMT Bar Bending Machine

Automatic TMT Bar Bending Machine

Product Details :

PowerMechanical
Bar Dimensions820X780X810mm
Model Name/NumberGW42B
Max Bending Radius5-36 mm
Max Bending Angle360 Degree
Power SourceMechanical Drive
Motor Speed1440r/min
Machine Weight320kg
Bending Speed20-30r/min
Motor Capacity3 kw
Voltage440 V
Rotation Speed14 RPM
BrandWaxcon


1. Adopts the 10mm thicken top plate and high rigidity disk of iron, more durable.

2. Equipped with international standard copper motor.

3. Equipped with ultra-high hardness accessory and adjustable fender.

4. Equipped with stop switch, the machine can stop immediately, ensure the safety of the workers.

5. Adopt 16mm thick top plate, high rigidity disk, adjustable stylobate, the bending angle of more efficient.

6. Equipped with international standard copper wire brake motor, narrowing inertance when the machine stops and bending angle is more accurate.

7. Pin-type positioning disk, it can adjust angle from 0-360 degree, more easily and convenient.



Application :

The rebar bender steel bar bending machine is suitable for various of geometric shapes that are required for the processing of various ordinary carbon steel and rebar in construction engineering.
