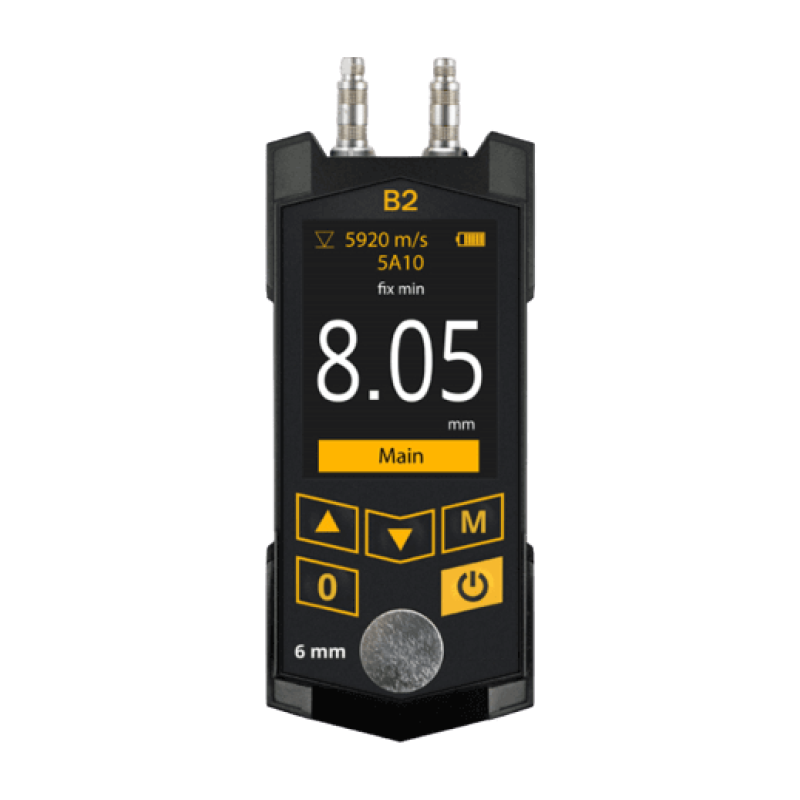

Basic Gauge- B2

Product Details :

Purpose

The device is designed to measure the thickness of products from metallic and nonmetallic materials (sheets, tanks, pipes, pipelines, bridges, metal containers, transport and other structures, including highly corroded, with incrustation, etc.) during operation to determine their corrosion state on or after the manufacture of energy, tube, engineering, shipbuilding, transportation and other enterprises.

Features

• high sensitivity, simplicity and ease of operation;
• possibility of manual and automatic adjustment of sensitivity backlight display;
• graphic LCD with an extended keypad provides a user-friendly interface with the device
• possibility to store and view the results of measurements.

Basic technical characteristics

• measurement range for steel (T), mm: 0,5–200;
• measurement range for steel (T), mm: 0,5–200;
• resolution (keypad selectable), mm: 0,1; 0,01;
• measurement accuracy, µm: ±(0,002T +0,03) in range of 0,5 to 10,0; ±(0,002T +0,05) in range of 10,0 to 200,0;
• possibility of gain adjustment;
• data memory: up to 2000 measurements;
• automatic probe recognition;
• display: graphic LCD with backlight;
• power– battery 9V;
• operating temperature: from -10 °C to +50 °C (standard); from -20 °C to +50 °C (on request);
