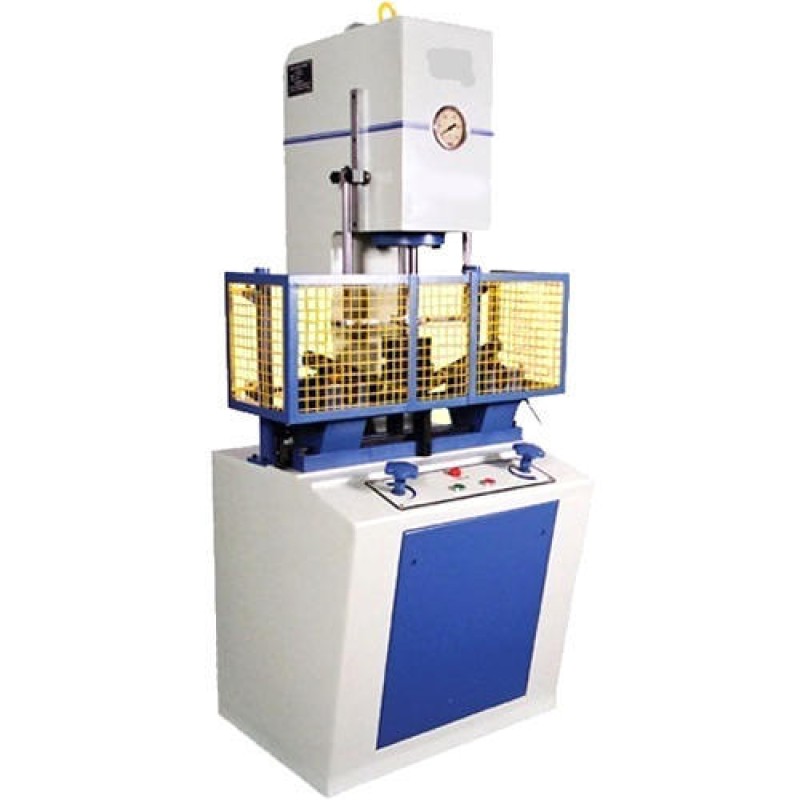

Bend Testing Machine

Product Details :

Our clients can avail these Bend Testing Machine for various quality analyzing purposes. We are committed to serving our clients with an excellent range of machine and so we test these machines on various parameters to ensure reliability. We procure our range from the reliable vendors of the industry, who possess a vast knowledge about this domain. Our clients can avail these machines in different grades and dimensions as per their requirement. We offer these machines at reasonable rates.

Features :

• C- frame design & hydraulically operated.
• Suitable re-bending tools supplied which will be incorporated into the machine.
• Hinged grilled safety doors at the front are provided for safety.
• Accuracy conforming to BS: 4449.

Specifications :

• Maximum load capacity 10,000 kgs
• Maximum downward speed of piston 300 mm / min
• Stroke of piston 250 mm.
• Maximum operating pressure of hydraulic system 200 kg /cm so.
• Dia of support rollers 100 mm.
• The distance between support rollers (adjustable) - 400 mm.
• Farmers of following diameters provided along with machine
• Dia.: 12, 16, 20, 24, 30, 32, 40, 50, 60, 80, 140, 175, 224, 280 mm
• Suitable re-bending tools supplied which will be incorporated into the machine.
• The up down of the piston is through hand operated DC valve.
• The piston speed during down stroke is adjustable through manual operation of flow control valve.
