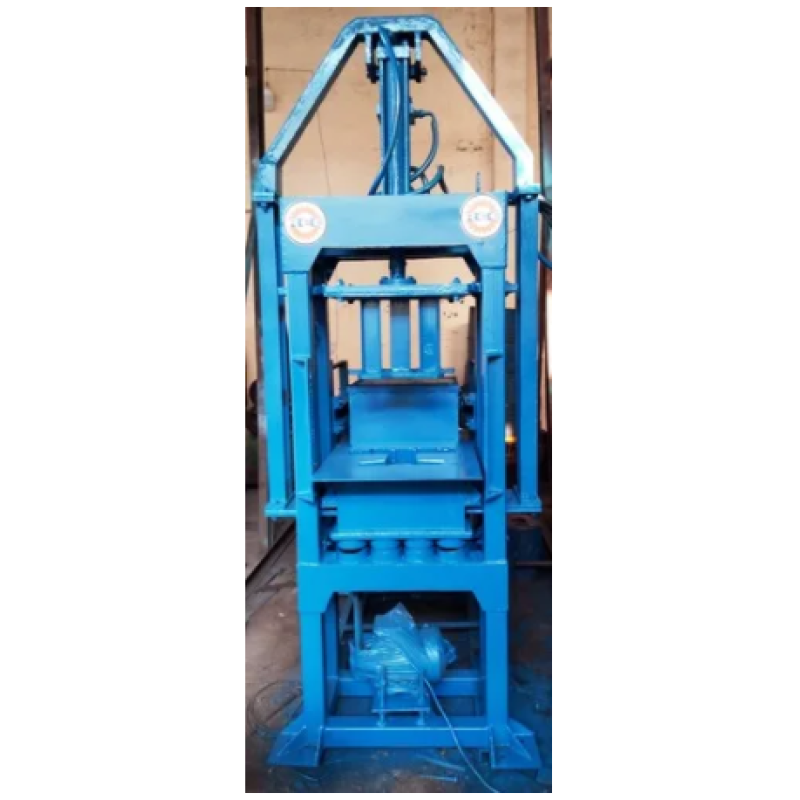

VIBRO HYDRO BLOCK MACHINE-M
Product Details :
- General Use Block Machine
- Automatic Yes
- Voltage 240 Volt (v)
- Feature High Durability
- Color Blue
- Warranty Yes
- Supply Ability : 1 Unit Per Month
Technical Data :
Model | RVH-03 |
Vibration | Table Vibration |
Vibrating Frequency | 3000 to 4000 RPM |
Cycle Time | 1 Minute |
Hyd. Motor | 5 H.P. |
Vibrating Motor | 5 H.P. |
Total Power | 10 H.P. |
Specification and capacity :
Product | Product Size(mm) | Pcs/Mould | Pcs/Hour | Pcs/8 Hour |
Solid Brick | 230 x 110 x 75 | 8 | 480 | 3000 - 4000 |
Paving Block | 200 x 100 x 60 | 4 | 240 | 1500 - 2000 |
Block | 400 x 200 x 200 | 2 | 120 | 900 - 1000 |
VIBRO-HYDRO BLOCK MACHINE
Product Description :
Electric Motor 5HP 3PH of ABB / Havells or any Branded, Complete With Power Pack (Pump of Douty/Boss ). Electric Panel , Oil Tank Capacity 150 Lit. Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity 3000 to 4000 Bricks/Shift of Standard size ( 230mm x 110mm x 75mm). 5 H.P. Mould Vibrator. Manual Wooden Pallet pusher with One Mould. Manual feeding of raw material in the Mould.
PAN TYPE MIXER :
1 No. “Reva" Pan Mixer having capacity of 300 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge blades,having special alloy steel tips,complete with quality Worm Reduction Gear Box of Elecon, powered by 10 H.P. Electric Motor of any branded make with starter.
OR
Drum type Concrete Mixer of 10/7 CFT, Powered by 5 H.P. Electric Motor with Starter.
