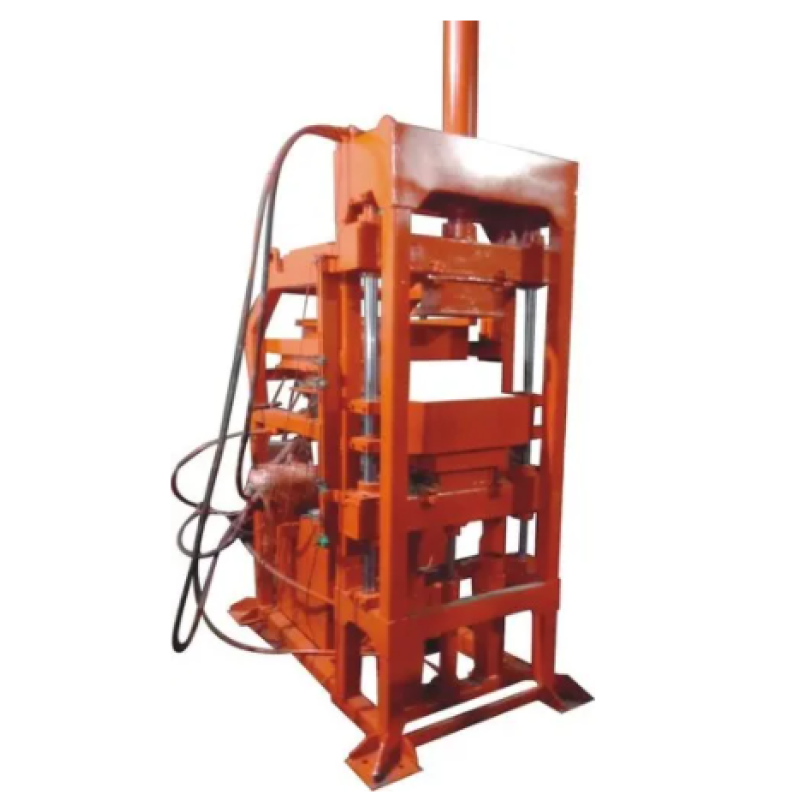

AUTOMATIC INTERLOCKING BRICK MACHINES
Product Details :
- General Use Interlocking Brick Machines
- Automatic Yes
- Voltage 480 Volt
- Feature High Durability
- Color Red
- Warranty Yes
- Supply Ability : 1 Unit Per Month
Product Description :
FLY ASH/CONCRETE BRICK/PAVER MAKING VIBRO-HYDRAULIC PRESS - FULLY AUTOMATIC MACHINE (RBM-06)
Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC) Limit Switch/Proximity Sensors, Hopper, Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity 4500 to 6,000 Bricks/Shift. Automatic material feeder ,Hydraulic operated, controlled by PLC.
Hydraulic Control Unit with motor, pump and valves.
Mitsubishi PLC Controlled Electric Panel.
PAN MIXTURE :
1 No. Pan Mixer having capacity of 300 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 5/7.5 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
CONVEYOR :
1 No. “Reva†Belt Conveyor for loading and unloading the material of the Pan Mixer , and powered by 2 H.P.Electric Motor of Havells/Crompton make fitted with quality gear box with starter.The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers.
MOULD :
(02 Cavity) Two Bricks per Stroke.
Pallet Trucks :
- 2 Nos. Hydraulic Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
- Automatic Material Feeder in the Moulds, Hydraulic Operated, Controlled by PLC.
