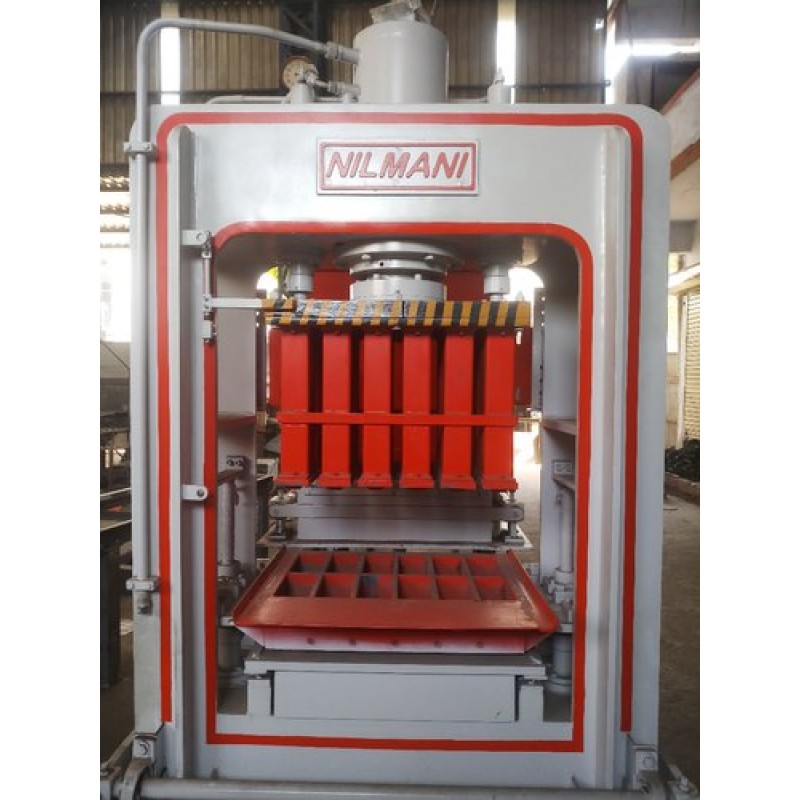

Cement Brick Making Machine
Product Details :
Brick Raw Material | Concrete |
Brick Type | Hollow |
Brand | Nilmani |
Model Name/Number | n502 |
Automation Grade | Automatic |
Method | Autoclave Aerated |
Warranty | 1 Year |
Specifications:
Specifications :
- Bottom Plate : 140 mm M.S
- Side Wall Plate : 6 mm M.S
- Ramming : 1 no
- Box : 2 nos
- Feeder : 1 no
- Wooden Pallet Conveyor : 1 no
- Conveyor Belt Thickness : 8 mm
- Length 22 foot
- Well designed PLC control system
- Tank Capacity For Hydraulic Oil : 400 liters
- Single Layer Feeder box Electrical PLC control panel
- Bricks Removal : Through 10 ft conveyor
- Operating Pressure : 220 bar-100 ton
- Mixing Rough Material : From pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box
