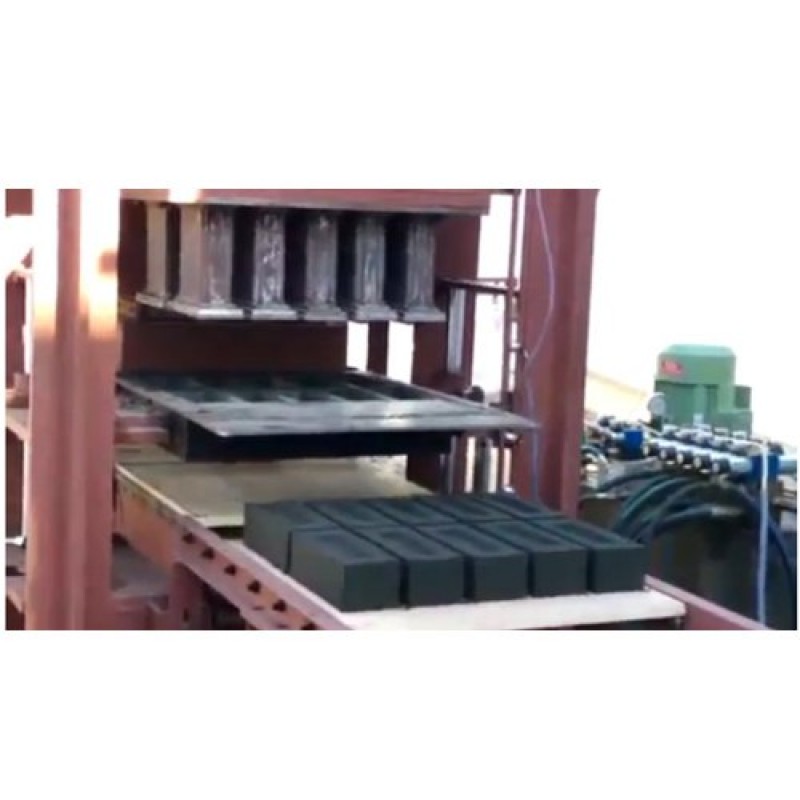

Interlocking Brick Making Machine
Product Details :
Material | Mild Steel |
Brand | Nilmani |
Capacity | 1800-2000 per hour |
Model Name/Number | 10 BOP |
Automation Grade | Automatic |
Motor Power | 12.5HP |
Hyd Oil capacity | 350 litre |
Panmixer Diameter | 1800 x 550 mm |
Panmixer Capacity | 750 kg |
Panmixer Side liner | 6+5 mm |
Panmixer Bottom liner | 12+5 mm |
Conveyor Size | 500 x 8000 x 10mm |
Conveyor Motor Power | 2HP |
Product Description We are leading manufacturer of Hydraulic Paver Block Making Machine.
TECHNICAL SPECIFICATION | ||
1. | Type of System | Fully Automatic ( Multi Purpose) |
2. | Technology | Hydro + Vibro (German) |
3. | Overall Plant Dimension | 9.7 x 5.5 x 3.6 m |
4. | Pallet size | 565 x 550 x 18 mm |
5. | The frequency of vibrate | 75-90 Hz |
6. | Cycle time | 15-20 sec. |
7 | Maximum excitation force | 40-45 KN |
8. | Hydraulic tank Oil Capacity | 200 Ltr. (68 Grade) |
9. | Installed capacity | 37.0 HP |
10. | PAN Mixer (Heavy Duty) | 350.0 KG - 2Nos. |
11. | Conveyor (Dunlop/MRF ) | 22.0 Feet |
12. | Pallet Shifting | Automatic Stacker System |
13. | PLC & HMI | Schneider/Siemens |
14. | Hydraulic Valve | Yuken |
15. | Hydraulic Pump | Rexroth/Dowty |
