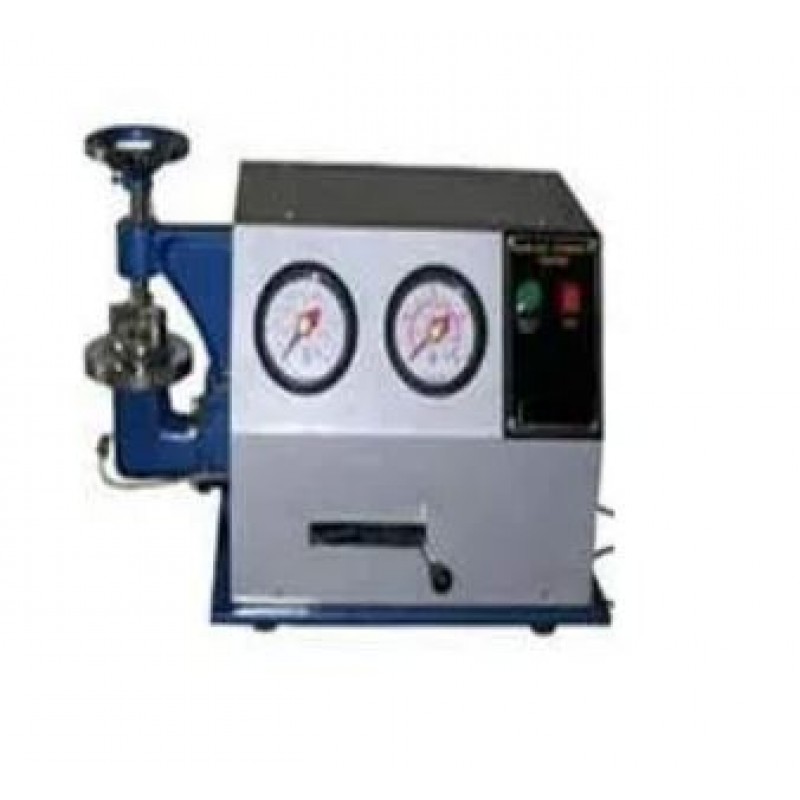

Bursting Strength Tester Analogue
Product Description
Bursting Strength Tester Analogue : ITEM CODE: KTS-009
- Capacity: 0 - 35Kg / sq.cm
- To determine the Bursting strength of any material such as paper, paperboards, corrugated boards and boxes, solid fibreboards, filter cloth, industrial fabrics, leather, rexine, etc. is its strength under multi -directional force and is defined, as the hydrostatic pressure required producing rapture of the material when pressure is applied at a controlled increasing rate through a rubber diaphragm.
- Analogue Opening in upper clamp: 30.5 mm diameter and Opening in lower clamp: 38.1 mm diameter. Rate of fluid displacement: 95cc/minute Pressure.
- Standards: ISO 2758 / 2559 / 3303 / 3689, ASTM D3786, BS3137 / 3424, IS 1966
