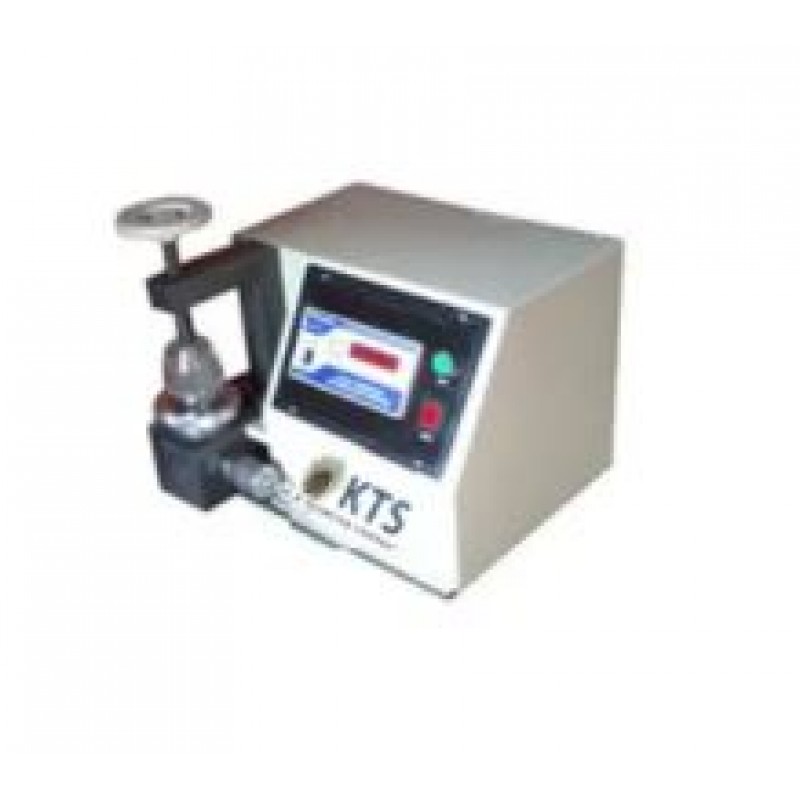

Bursting Strength Tester
Product Description
Bursting Strength Tester - Digital - ITEM CODE:KTS-009D
Capacity: 0 - 35Kg / sq.cm
Digital Bursting Strength Tester is used to determine the bursting strength of any fabric, leather, paper and card board. Bursting Strength tester works on hydraulic pressure crated in cylinder through glycerin. A test specimen is held between two annular clamps under sufficient pressure to minimize slippage.
Technical Data
- Opening in upper clamp: 30.5 mm diameter
- Opening in lower clamp: 33.1 mm diameter
- Rate of fluid displacement: 95 cm³/minute
- Pressure gauges range: 35kgf/cm² x 0.1 kgf/cm² (Other ranges can be supplied against specific requirements)
- Test fluid: Glycerin, Motor: ¼ HP single-phase 230-volts-AC
- Gear box: Worm reduction type, Weight: 75kgs
- Standards: ISO 2758/ 2559/3303 3689, ASTM D3786, BS 3137/3424,IS 1966
