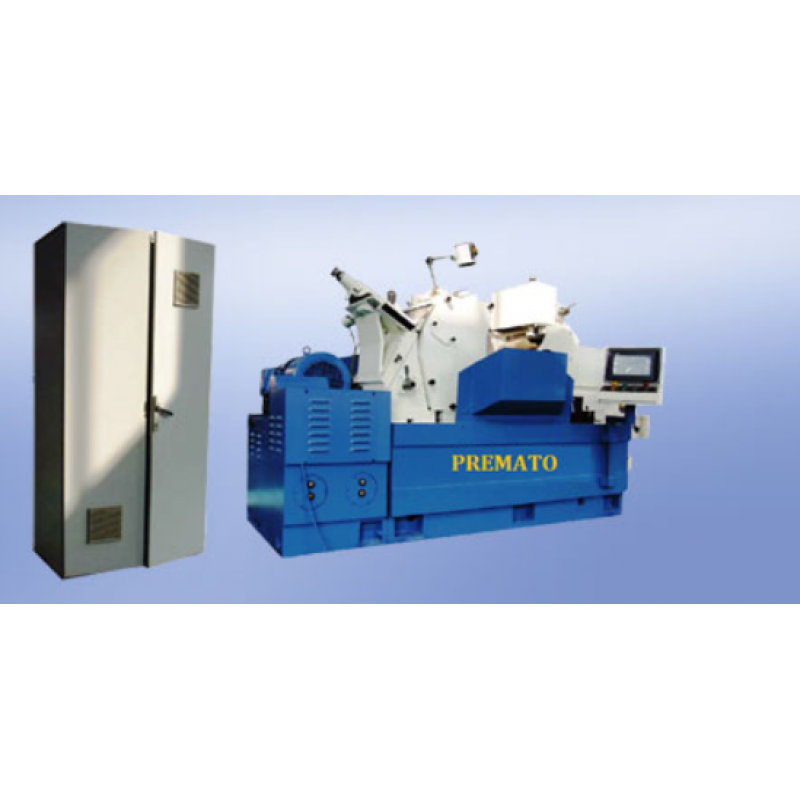

CNC Centerless Grinding Machine
Click Image for Gallery
CNC Centerless Grinding Machine CNC Centerless Grinding Machine
Model ParameterMG1020MG10405MG1050MG1080MG10100
Grinding diameterFull: 0.5-20mm Cut: 3-20mmFull: 2-40mm Cut: 7-40mmFull: 5-50mrn Cut: 7-50mmFull:5-80m Cut:5.80mFull:5-100mm Cut:5-100mm
Grinding wheel300*100*127mm350.125*127mm400*150*203mm500*150*305mm500*200*205mm
Grinding lengthFull:180mm Cut:95mmFull:140mm Cut:120mmFull:120mm Cut:120mmFull:250mm Cut:190mmFull:250mm Cut:190mm
Regulating wheel200•100*75mm250*125*75mm300*100*127mm300*100*127mm300*100*127mm
Rotating speed of the grinding wheel2131r/min1870r/min1668r/min1300r/min1010r/min
Rotating speed of the regulating wheel20-110r/min20-180r/min20-2000r/min5-250r/min12-110r/min
Rotating return angle of the regulating wheelPlane:-1°--3° Vertical: -1° --3°Plane:0° --3° Vertical: -2°-4°Plane:-2°--5° Vertical: -1° --3°Plane:-2° --5° Vertical: 0° --3°Plane:-0.5°--4.5° Vertical: 0,-3°
Driving power of the machine5.35Kw9Kw13.8Kw17Kw26Kw
Working precisionRoundness:lum Cylindricity:1.5umRoundness:lum Cylindricity:2umRoundness:lum Cylindricity:2umRoundness:lum Cylindricity:2umRoundness:lum Cylindricity:2um
The minimum feeding value of the regulating wheel stand0.001mm0.001mm0.001mm0.001mm0.001mm
