Technical Specification
| DESCRIPTION | SPECIFICATION |
| Height of Centers | 150 mm |
| Maximum Grinding Length | 600 mm |
| Maximum Grinding Diameter | 250 mm |
| Maximum work piece weight | 120 kg. approx |
| CNC System | Fanuc OiTF |
| Grinding Wheel (ODxWidthxBore) | 400x40x127 mm |
| Grinding Speed Mtr/Sec. | 35-45 mtr/sec. |
| Spindle speeds | 50 - 350 RPM |
| Spindle taper | MT – 4 |

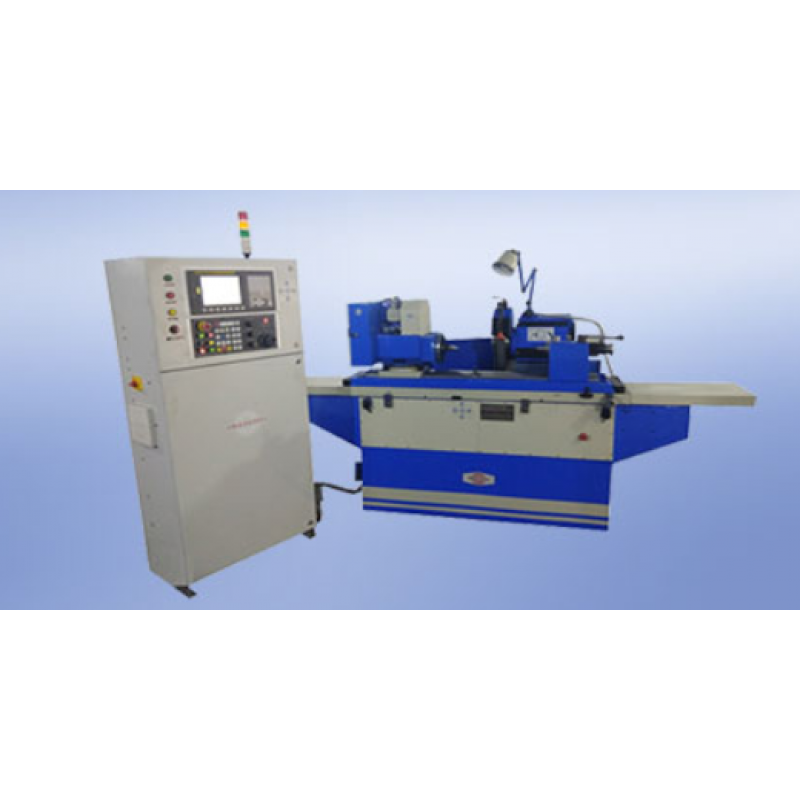

CNC Cylindrical Grinding Machine With Fanuc OITF CNC Controller
