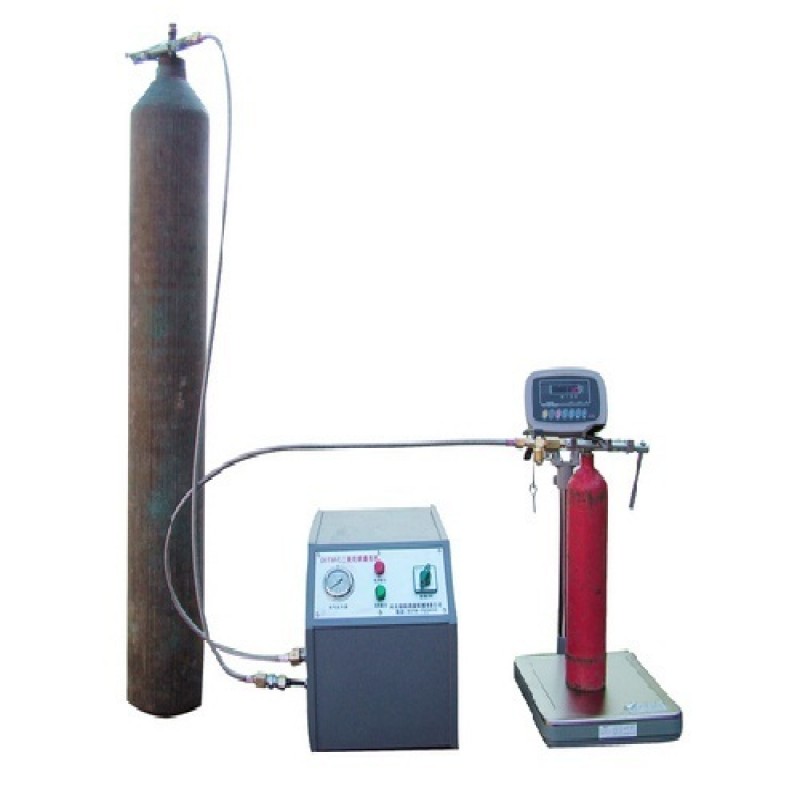

CO2 Filling Machine
Product Details :
| Model Name/Number | MIFW |
| Size/Dimension | DIFFERENT |
| Driven Type | Electric |
| Material | Mild Steel |
| Packaging Type | CYLENDER |
| Power Consumption | S3 PHASE |
| Machine Type | Automatic |
| Usage/Application | INDUSTRIAL |
| Capacity | 200 KG. |
| Gas Type | LIQUID |
| Automatic Grade | Semi- Automatic, Automatic |
| Brand/Make | MANSI |
We are offering CO2 Filling Machine.
Specification:
| System | Liquid carbon dioxide filling system |
| Capacity | 10-200 kg |
| Resolution(e) | 200 g |
| Accuracy | ± 2 e |
| Load Sensor | Strain gauges based Loadcell |
| Printer (Optional) | 80 column dot matrix |
| Features of the Control Panel | PLC, 0.5 inches Seven segment display to indicate set, achieved and cumulative quantity, keyboard to enter set point and reset tare weight etc. |
| Weighing platform | 400 mm x 400 mm MS Powder coated |
| Control valve | Pneumatically operated |
| Power supply | 230 V AC, 50 Hz and 3 phase 440 V |
| Air supply | 5-6 kg / cm2 |
Additional Information:
- Production Capacity: 100 PER YEAR
- Delivery Time: 1-5 DAYS
