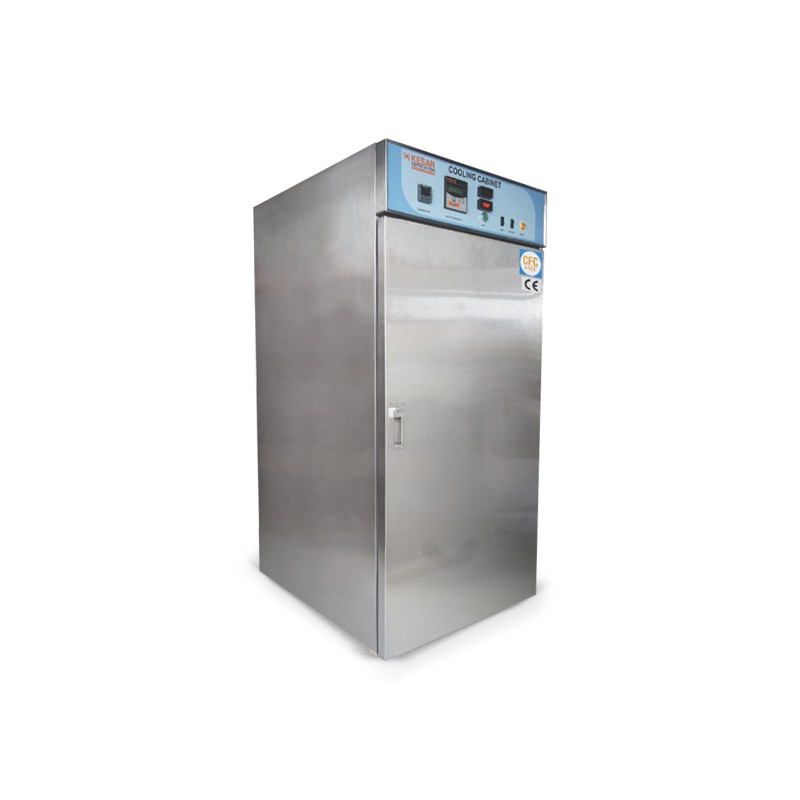

COLD CHAMBER
FEATURES :
- Fabricated on fully automatic CNC machines.
- The inner working chamber is water & vapour tight high-grade stainless steel.
- All seams are arc-welded & passivity for strength & durability.
- Chambers are provide with effective air circulation system.
- Double Door: Inner full viewing glass door and outer door insulated with lock and key arrangement. Inner and outer doors are sealed with silicone sponge rubber gasket.
- Control panel with electrical switch gear and refrigeration system mounted on top for easy service accessibility.
- Equipment mounted on heavy castor wheels for easy movement.
- Heavy duty solid stainless duly electro polished wire mesh type trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience.
OPTIONAL FEATURES
- Stand by cooling system
- Scanner
- GSM/Mobile alert system
- Security alarm System
- CFC free refrigerant
TECHNICAL SPECIFICATION :
| Technical Specification | |
|---|---|
| Temperature Range | 2 °C to 8 °C |
| Accuracy | +1.5 °C |
| Uniformity | +2.0 °C |
| Control System | PLC or PID Based |
MATERIAL OF CONSTRUCTION :
| Models | Material of Construction | |
|---|---|---|
| Interior | Exterior | |
| STD | S.S.304 Dull Finish | G.I Powder Coated |
| GMP | S.S.304 Dull Finish | S.S.304 Dull Finish |
| CGMP | S.S.316 Dull Finish | S.S.304 Dull Finish |
SIZES :
| Capacity (in ltrs.) | Dimensions (W X D X H) | MAX No. of Trays | ||
|---|---|---|---|---|
| Internal (mm) Width Depth Height | External (mm) Width Depth Height | |||
| GMP-CC90L | 90 | 450 X 400 X 500 | 600 X 820 X 1050 | 3 |
| GMP-CC227L | 227 | 600 X 630 X 600 | 750 X 1065 X 1180 | 4 |
| GMP-CC325L | 325 | 600 X 630 X 900 | 750 X 1065 X 1480 | 6 |
| GMP-CC400L | 400 | 600 X 630 X 1060 | 750 X 1065 X 1640 | 7 |
| GMP-CC500L | 500 | 600 X 630 X 1350 | 750 X 1065 X 1905 | 8 |
| GMP-CC600L | 600 | 800 X 800 X 950 | 950 X 1265 X 1530 | 6 |
| GMP-CC800L | 800 | 800 X 800 X 1250 | 950 X 1265 X 1830 | 9 |
| GMP-CC1000L | 1000 | 800 X 800 X 1570 | 950 X 1265 X 2150 | 9 |
