Capillary Extension:

HTK-1200N

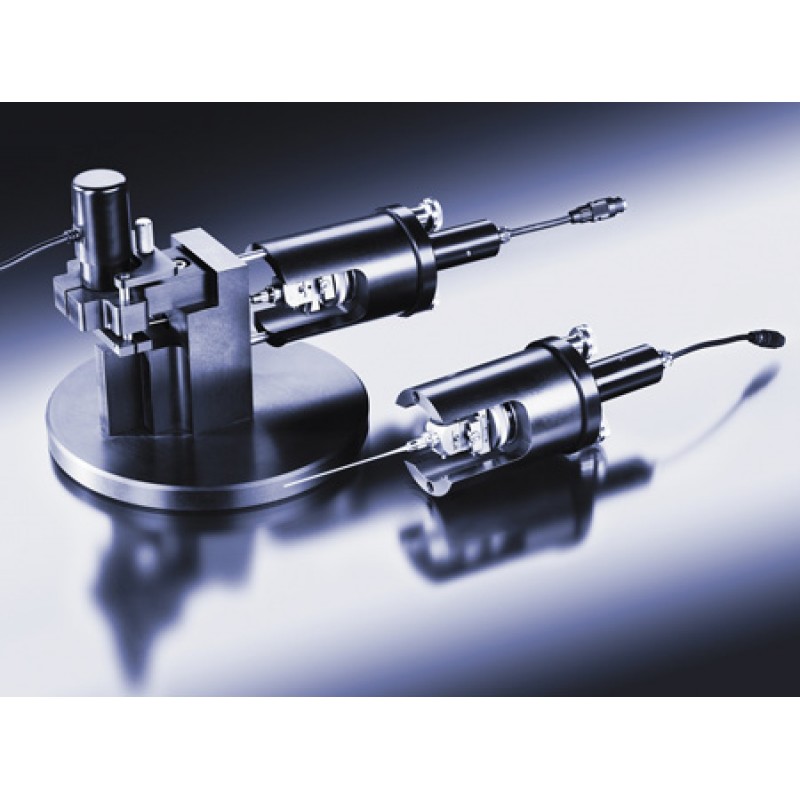

The HTK 1200N Capillary Extension is the first “two-in-one” setup for combined reflection and transmission XRD studies at high temperatures up to 1200 °C. It turns the HTK 1200N high temperature chamber into a high-end capillary heater for transmission XRD. Benefits include high-temperature homogeneity and excellent temperature control combined with easy capillary handling. It takes only a few minutes for you to convert from the flat sample to the capillary setup, giving you the possibility to choose the optimum beam geometry for every sample.

Key Features

One stage for flat samples and capillaries

• Conversion of HTK 1200N Oven Chamber into a powerful capillary heater up to 1200 °C
• Fast conversion without removing HTK 1200N from the diffractometer
• Easy capillary mounting and alignment
• PC-operated video microscope for capillary centering

High temperature with excellent accuracy

• Very uniform temperature across the irradiated sample volume
• High accuracy of temperature measurement

Suitable for a wide variety of samples

• Holder for sealed capillaries for highly air-sensitive samples
• Holder for unsealed capillaries with a funnel for easy capillary mounting
• Open capillary holder to investigate gas-releasing materials
