Compacting factor apparatus
Product Details:

Minimum Order Quantity	1 each
Usage/Application	Cement Plant
Type Of Testing Machines	testers
Material	steel
Automation Grade	Manual
Weight	normal
Color	All

Compacting factor apparatus conforming to IS 1199, 5515. & BS 1881-103      Rs. 11500/-
The apparatus is used for determining the workability of fresh concrete, provided the maximum size of the aggregate does not exceed 38mm. The test is particularly useful for concrete mixes of very low workability where true slump values are not reliable.

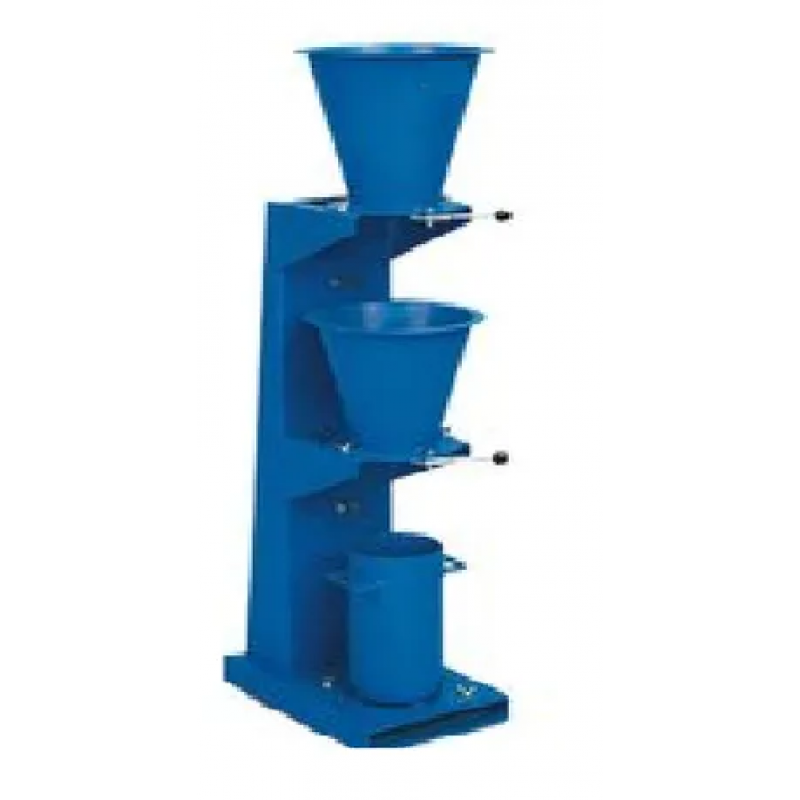

Specification : It consists of two rigid conical hoppers and a cylinder mounted on a rigid metal frame. The lower openings of the hoppers are fitted with hinged trapdoors having a quick release catches. A circular metal plate is provided to cover the top of the cylinder. Supplied complete with one plaster's trowel and one tamping rod, 16mm dia x 600mm long, both ends rounded.
Additional Information:

• Packaging Details: Wooden Packing
