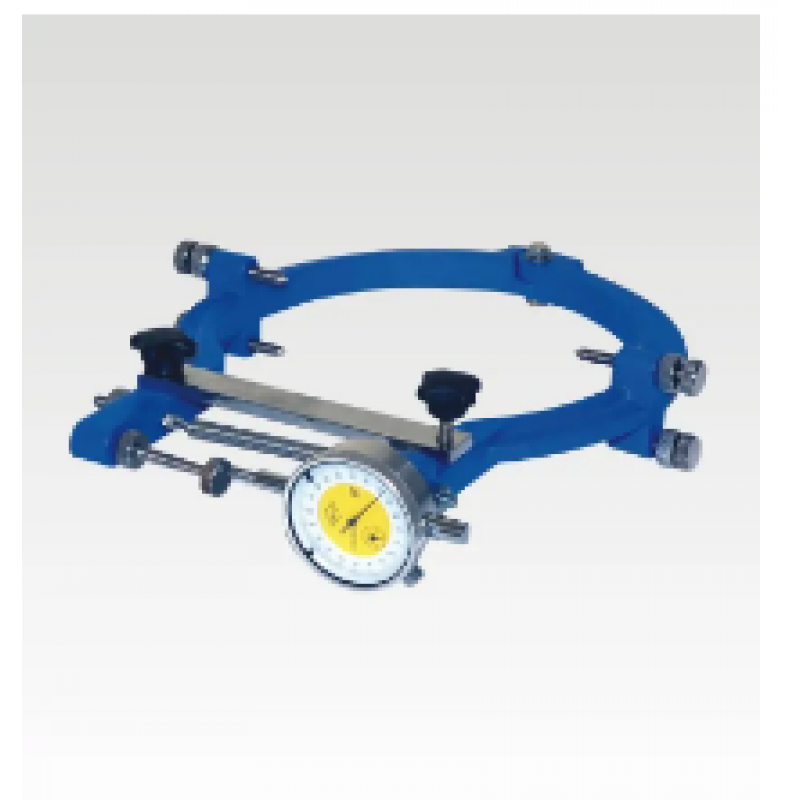

Lateral Extensometer (150 mm dia)
Product Details :
For measuring the lateral extension of 15cm dia concrete cylinders during the compression test.
The apparatus consists of two semi-circular frames pivoted at one end and carrying a dial gauge of 0.002 mm x 5 mm range at the other. Four clamping screws are provided for initial setting of the instrument. The dial gauge records the deformation readings magnified 2.5 times.
Supplied complete in a wooden box.
