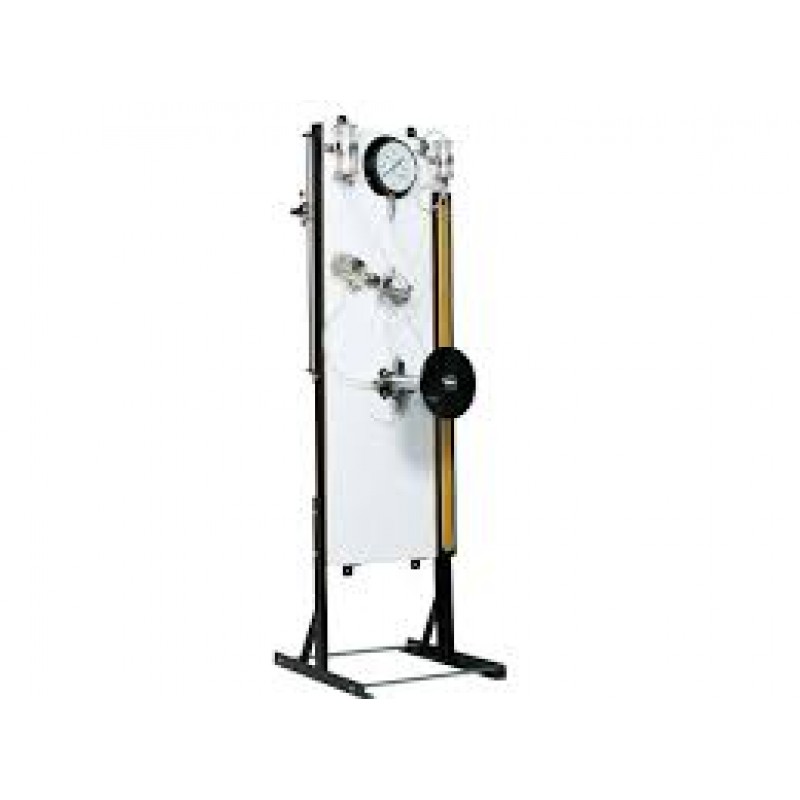

Bishop Pore Pressure Apparatus

Product Details :

Consists of panel for wall mounting on which are fitted wall mounting on which are fitted 1.0 to 10Kg/cm2 x0.1Kg/cm2 a pressure gauge, Bourdon tube 20cm dia.

Manometer

• Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost ) Null indicator made out of clear transport perspex with mercury trap and cursor to indicate the mercury level.

Burette

• 50 ml Burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valve, Operated by means of a hand wheel on the end of the piston rod which is threaded thru the pump cap and gives a smooth, fine adjustment of pressure copper coil and water reservoir.
• The unit is tested against leaks upto 10Kg/cm2
