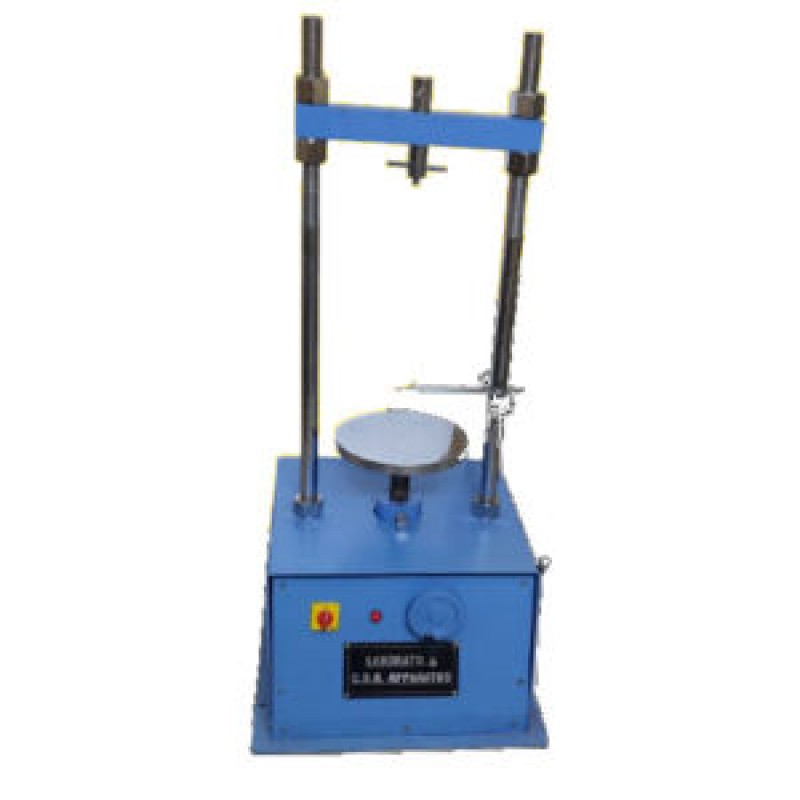

California Bearing Ratio
Product Details:
The California bearing ratio test, (usually called as CBR test) is an empirical test developed in California.
Models Available
- California Bearing Ratio 3 Speed
- California Bearing Ratio 6 Speed
- California Bearing Ratio 12 Speed
- The CBR Load Frame Consists of :
SPECIFICATION
- HI-063A Load Frame, 50kn ( 5000 kg) Capacity, 3 Speeds
- HI-063B Zinc Coated Mild Steel Mould 150mm ID x 175mm high
- HI-063C Perforated Base Plate for HI-063 Zinc Coated Mild Steel Mould
- HI-063D Zinc Coated Mild Steel Extension Collar, 150mm ID x 50mm high
- HI-063E Penetration Piston, 50mm face dia
- HI-063F Adjustable Bracket, for Penetration Dial Gauge
- HI-063G Circular Metal Spacer Disc. With a detachable handle, 148 mm dia x 47.7 mm high time.
- HI-063H Annular Metal Weight, 2.5kg, 147mm dia with 53 mm dia central hole
- HI-063I Perforated Metal Weight 2.5 kg. 147mm dia, with 53mm dia soft
- HI-063J Perforated Plate, 148mm dia, with an adjustable stem and lock nut
- HI-063K Metal Tripod for Dial Gauge
- HI-063L Cutting Collar
- HI-063M Rammer 2.6kg, 310mm controlled drop
- HI-063N Rammer 4.9kg, 450mm controlled drop
- HI-063O Proving Ring Capacity 50 KN
- HI-063P Dial Gauge, 25 mm travel, 0.01mm least count
- Optional Extras:
HI-063Q Annular Metal Weight 5 kg, 147mm dia with 53 mm dia central hole
HI-063R Slotted Metal Weight 5 kg 147mm dia with 53mm dia s
