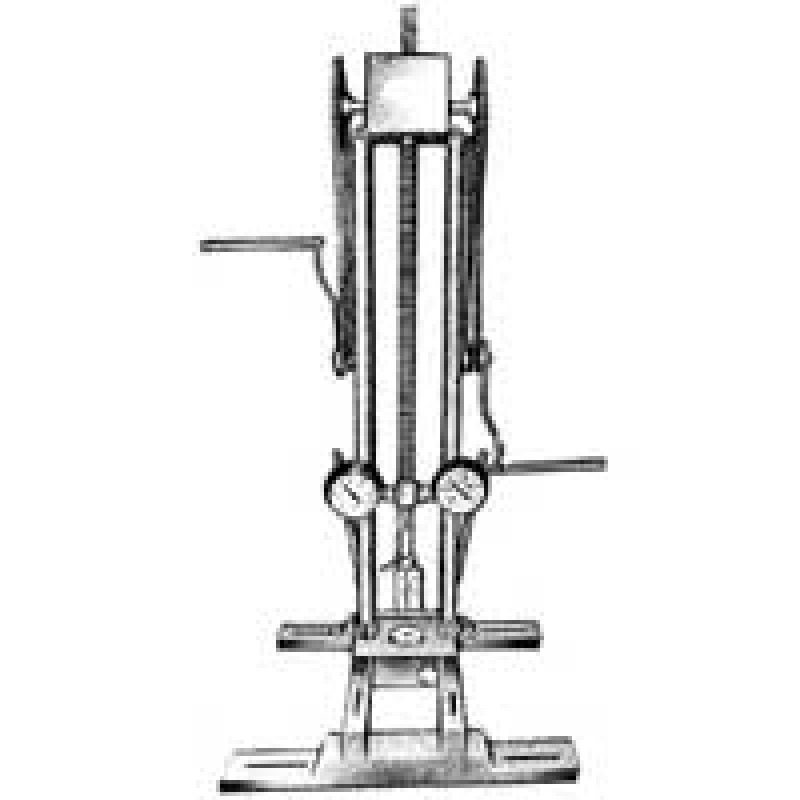

Cone Penetrometer
Product Details:
Avail from us well constructed Cone Penetrometer. The Static Cone Penetrometer with 3000 kg Capacity is repeatedly appreciated for precision. We are one of the prominent Cone Penetrometer Manufactuirers and Suppliers. The Cone Penetrometer is made available at market leading prices.
Standard :
IS: 4968-(Part III)
Details :
The drive is by means of a rack and pinion and is driven manually through a gearing arrangement. The gearbox rack and pinion are fixed on two upright pillars and the movement of the rack is guided by a bracket and two pillars. The loading is done hydraulically. Two pressure gauges 15cm dia. one of low capacity 0-60k9/sq.cm.in 0.5k9/cm. sq. divisions and other 0 -160k9/cm sq. are provided to indicate the penetration resistance. Isolation valve is provided to automatically isolate the lower range ga uge when it reaches the maximum capacity. The valve can be adjusted and locked at desired values between 20 to 60kg/cm sq. Provision is made to anchor the unit at site and there is provision for lateral shifting so that subsequent tests could be performed without having to shift the entire anchorage system.
Standard Outfit :
Penetration cone, steel 60� angle 10 sq cm base area with friction jacket -one Mantle tube, non uniform 36mm OD at the two ends and reduced diameter in

• Between with sounding rod, working length 1 m............. Fifteen
• Load measuring head with automatic cut-off valve and oil can. One set

• Pressure Gauge 0 - 160 kg/cm sq................ One
• Pressure Gauge 0 - 60 kg/cm sq.................. One

• Auger with bolt
• Auger driving handle

• T-Rod
• Spanner
