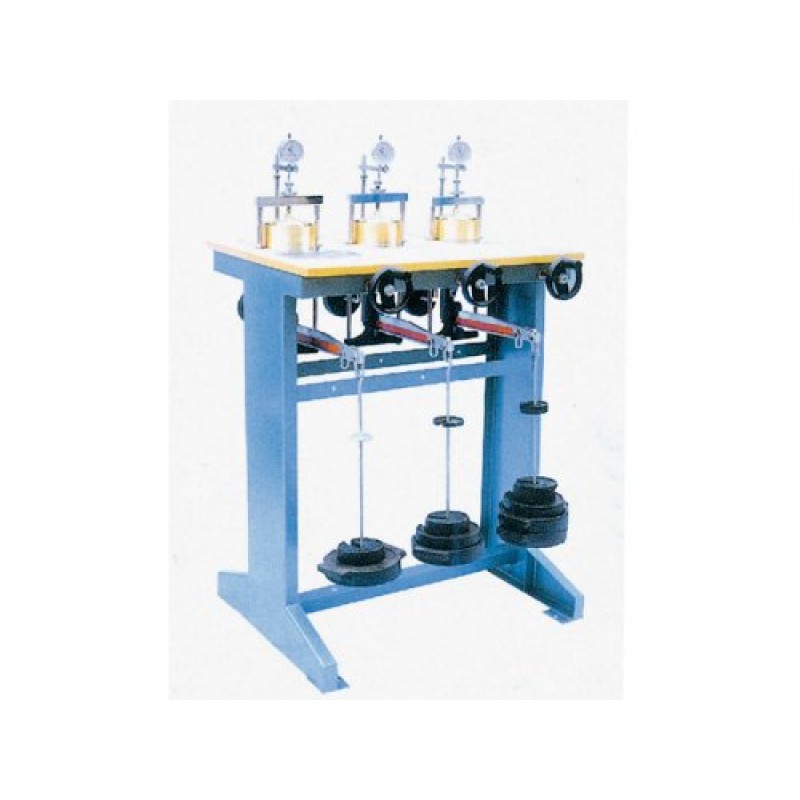

Consolidation Test Apparatus

Product Details :

• SINGLE GANG
• THREE GANG
• SIX GANG

Consists of :

• Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter- balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand.

Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens comprising :

• Fixed ring for specimens 60 mm dia x 20 mm thick with a guide ring.
• Top porous stone for 60 mm dia specimen.
• Bottom porous stone for 60 mm dia specimen.
• Pressure pad, perforated
• Channeled base with water inlet.
• Gasket.
• Flanged water jacket,
• Set of weights to give a pressure of 10 kg/cm2 on 60 mm specimen. Comprising : 7 off 0.05 kg/cm2, 5 off 0.1 kg/cm2, 6 off 0.2 kg/cm2, 6 off 0.5 kg/cm2, and 5 off 1.0 kg/cm2.
• Water reservoir with plastic tube, T-connection and pinch cock.
• Dial gauge, 0.01 mm x 25 mm travel
