Consolidation apparatus-Single gang
Product Details :
Capacity | Customize |
Power | Customize |
Pressure | Customize |
Size | Customize |
Model Name/Number | VSLIC-S120 |
Brand | Vertex |
Country of Origin | Made in India |

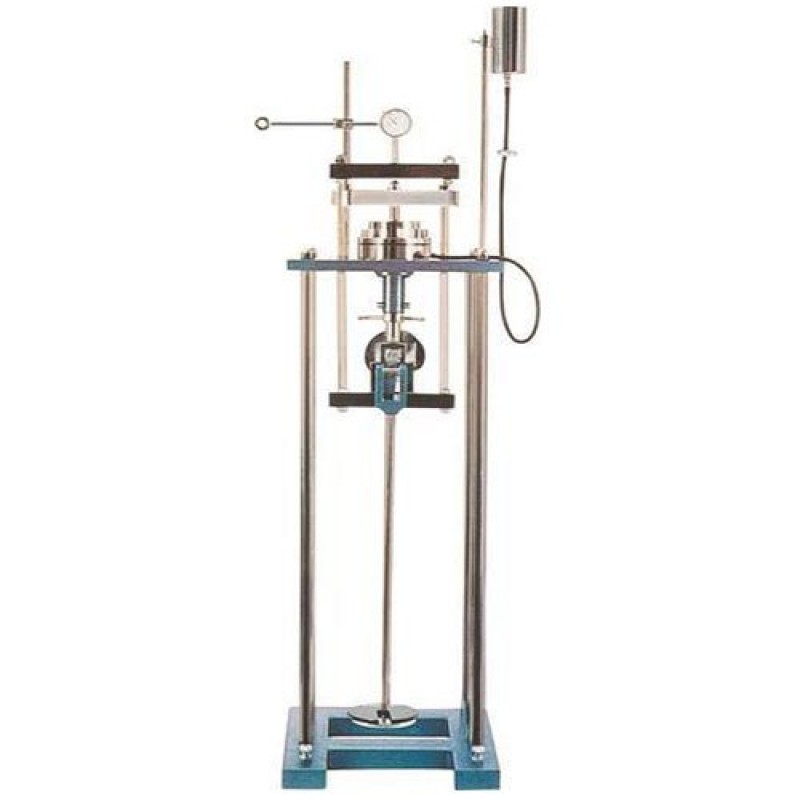

This Apparatus is Having a loading yoke connected to a lever arm with a counterbalancing adjustment and having a lever ratio of 1:1 the whole assembly being mounted on a sturdy steel frame stand. The loading unit is so designed that it can be used for consolidation cells of different diameters as well as different dia floating ring type consolidation cells. Fixed ring type Consolidometer (Odometer) cell assembly for testing 60mm dia x 20mm thick specimen comprising: Fixed ring for specimens 60mm dia x 20mm thick with guide ring. Top and bottom porous stones for 60mm dia specimen.
Features
- Less maintenance.
- Sturdy construction.
- Easy installation.
Additional Information:
- Item Code: VSLIC-S120
