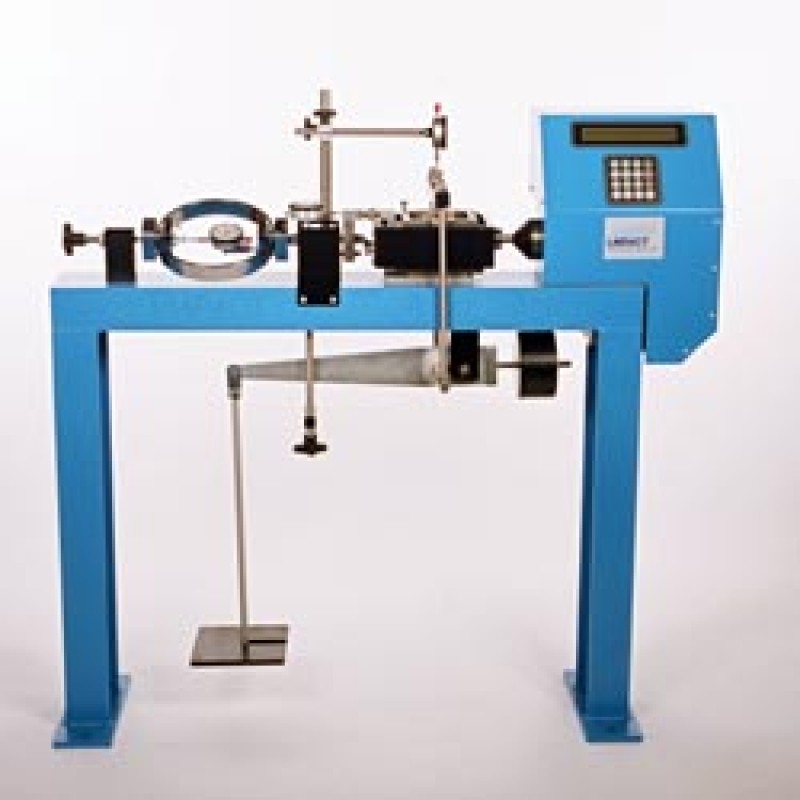

Direct Shear Apparatus - Digital Model

Digital Model

• Similar to Mechanical Model but with Electronic Outfit in place of Proving Ring and Dial Gauge

Outfit consists of

• 3 Channel Digital Indicator - 1 No.

Mode of Digital

Display             The decimal display point is positioned by the channel selector switch.

Power           220 V ± 10% mains, 50 Hz, single Ph. AC supply.

No. of channels     3

Parameter display  By a selector switch.

Load Cell -            1 No.

Capacity            2 KN (200 kgf) Universal type, TCPR

Max. Overload    110% of the rated capacity

Sensing Element    Strain Gauges in full bridge configuration. Displacement Sensor - 2 Nos.

Range            ± 19.99 mm

Sensing Element     LVDT

Complete as above
