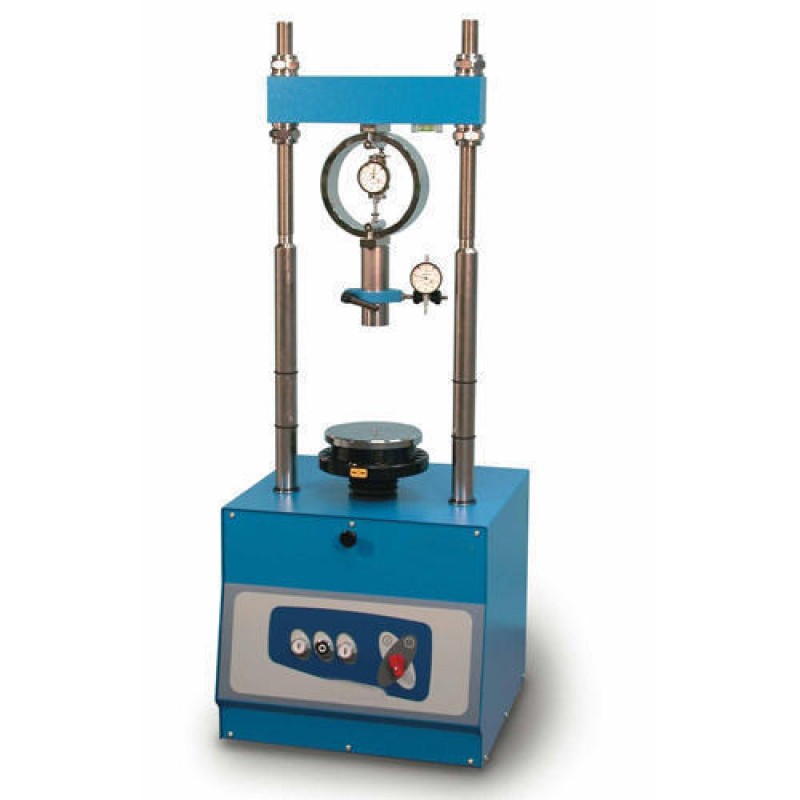

Field C.B.R. Test Apparatus

Product Details:

Width	45 cm
Height	30 cm
Diameter	215 mm to 250 mm
Capacity	5000 kg
Temperature range	10 to 70 Degree C
Dial gauge	0.01mm x 25mm
Slotted Metal Weight	5 Kg

U-bracket and swivel head. Penetration piston, 50mm dia threaded at the upper end. Extension rods set consisting of lengths 5cm, 2 lengths 10cm, 1length 30cm, 1 length 50cm, and 1 length 100cm, used as spacers between the proving ring and penetration piston. The lengths are machined from steel tubing. Connector set has eight connectors for coupling the penetration piston and proving ring assembly either directly or through extension pieces. Dial gauge support of seamless pipe construction. It stands 30cm high and 45cm wide at the base. Provided with a quick release screw type clamp capable of sliding and locking anywhere along the 2-meter length of the bridge. Supplied with annular metal weight 5 kg, 250mm dia with 53mm dia central hole, slotted metal weight 5 kg, 215 mm to 250 mm dia with 53mm dia slot, 2 Nos, Slotted metal weight 10 kg 215mm to 250mm dia with 53mm dia slot 2 Nos.
