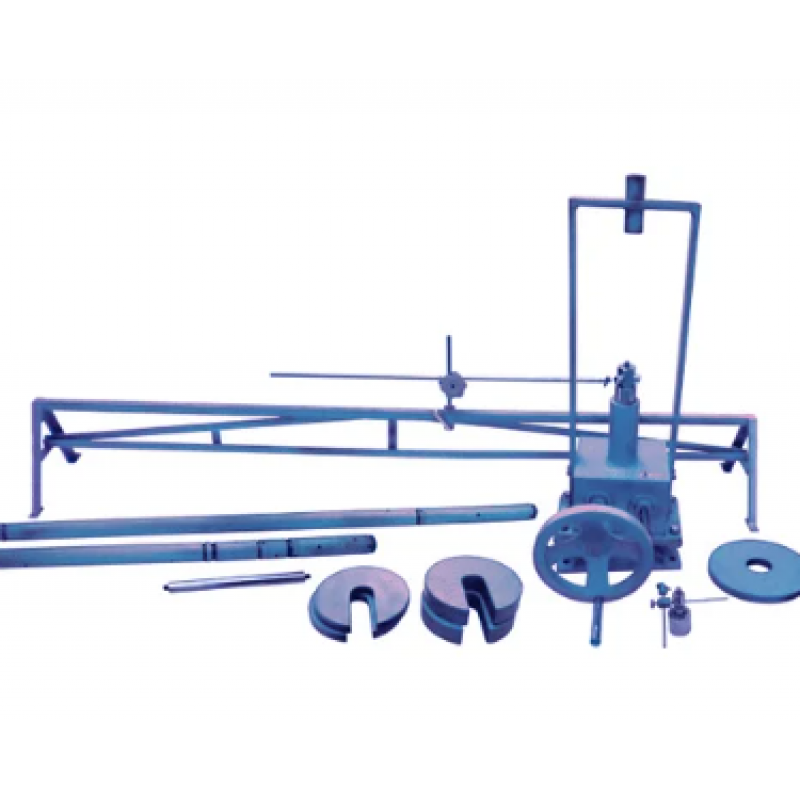

Field CBR Test Apparatus
Product Details:
It comprising of:
Loading jack screw type capacity 10,000kg (100KN) with U bracket Penetration piston assembly 50m dia.
Set of 7 extension spacers of assorted length with connectors.
Dial gauge support (Datum Bar) of welded steel, complete with adjustable bracket for dial gauge.
Surcharge weight slotted 5kg weight 215-250mm dia –Two
Surcharge weight annular, 5 kg,250mm dia. – One
(Proving ring and dial gauges are not included with standard outfit and are to be ordered separately specifying range and sensitivity)
