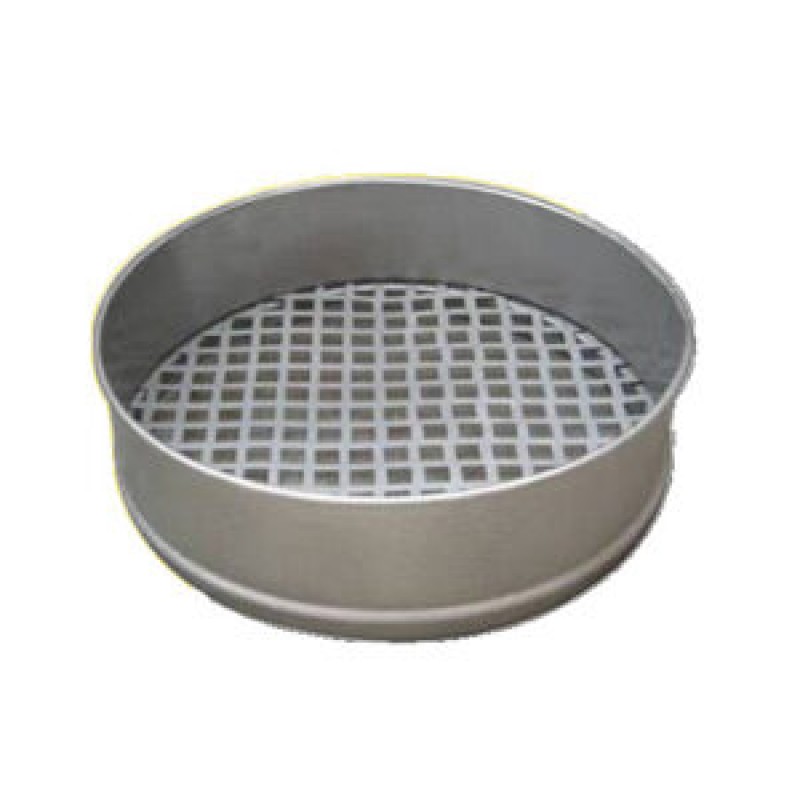

GI Sieve

Product Details:

A sieve, or sifter, is a device for separating wanted elements from unwanted material or for characterizing the particle size distribution of a sample. This is called a sieve analysis (or gradation test) the particle size distribution of a granular material. Hansa Instruments offers a wide range of high-quality testing sieves which are used in all types of sieve testing applications, from sampling and classification of soils, aggregates, and other powdered and granular materials. Our testing sieves are of the highest quality to ensure consistent fit, accurate specifications, and durable construction.

SPECIFICATION

Woven wire cloth and perforated plate sieves are supplied in 200 mm and 300 mm frame diameters in various nominal aperture sizes suitable for several applications and standards. Wet washing sieves are used for wet testing of various materials enabling to wash the fines through the sieve without losing any of the samples. Available in 200 mm diameter with 100 mm and 200 mm deep models. They are made with only the highest quality materials and are available in diameter sizes of 100, 200, 300, and 450 mm or in 4, 8, 12, or 18 inches. They can be supplied with aperture sizes ranging from 125 mm down to 20 microns in full or half height versions.

FEATURE

Available Sieves

As Per IS 460 (PART I)
125 mm 106 mm 100 mm 90 mm
80 mm 75 mm 63 mm 53 mm
50 mm 45 mm 40 mm 37.5 mm
31.5 mm 26.5 mm 25 mm 22.4 mm
20 mm 19 mm 16 mm 14 mm
13.2 mm 12.5 mm 11.2 mm 10 mm
9.5 mm 8 mm 6.7 mm 6.3 mm
5.6 mm 4.75 mm 4.0 mm 3.35 mm
2.36 mm 1.18 mm 1.00 mm
Note: Lid & Pan also available.
