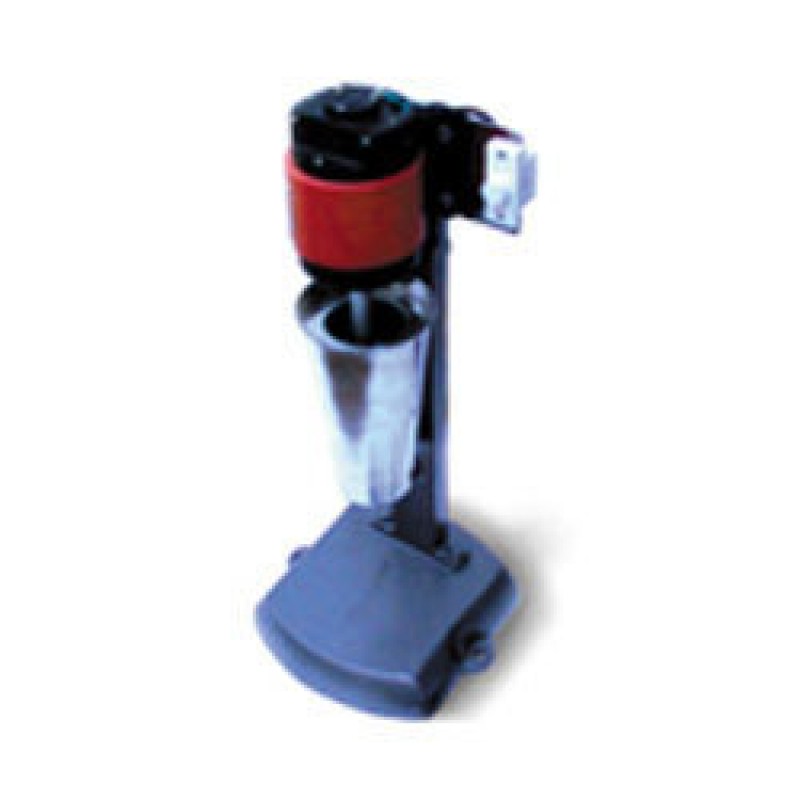

High Speed Stirrer
Product Details :
We provide our clients High Speed Stirrer that is a mechanical stirring device where a suitably mounted induction motor has a vertical shaft along with a speed of 6000 to 8000 revolutions per minute when loaded in. These stirrers are developed using advanced technologies and as per the industry standards. Moreover, these stirrers have different functional specifications for diverse requirements. Following are certain operational details of these stirrers:
- The shaft is equipped with a replaceable stirring paddle that is made of metal
- The surface has such length that the stirring paddle operates not less than 20 mm and not more than 35 mm, when used above the bottom of the dispersion cup
- The dispersion cup is supported on a rest and have a removable baffle
- A special dispersion cup conforms to either of the designs that shows in IS 2720 (Part IV) 1985 and is provided to hold the sample when it is dispersed
- The stirrer is free from vibration while in operation and the base is made of M.S. of at least size 20 cm X 25 cm along with rubber cushions
- The container and baffle are of such material that is not be affected by reagents like sodium carbonate, sodium silicate, sodium hexametaphosphate
- The stirrings device are suitable for operation on 230-250 volts AC with controller switch for many revolution
- It is provided with 3 core wiring that is provided with off-on switch on side
- The dimensions of stirring paddles for stirring apparatus and dispersion cup will be as per IS 2720(Part IV)1985
