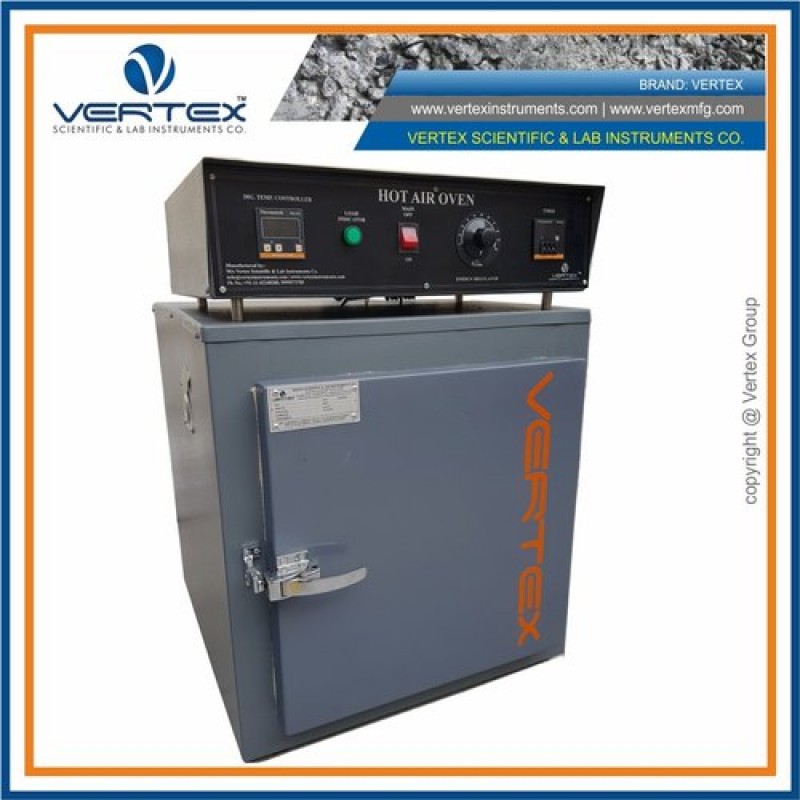

Hot Air Oven

Product Details :

About Product :

Determination of effect of aging on various physical properties of different materials may be carried out by heating the material under test inside an air oven so that the effects of long term aging is reproduced within a much shorter duration of time .for this determination, physical properties of the material under test are determined before aging and aging the test specimen at the specified temperature for a set duration of time and subsequent to the room temperature before conducting the tests again. Determination of various physical characteristics of different materials and products at the elevated temperature may be carried out by heating the test specimen to the appropriate the temperature inside a constant temperature air oven and determining the required characteristics of the specimen kept at the same temperature. For this purpose, the equipment needed for conducting the determination can either be kept inside the oven along with the test specimen or if this is not feasible because of certain constraints, by taken the heated specimen out from the oven and conduction the test in the still air within the shortest possible span of time. The Asian hot air Oven has a test chamber of double walled construction. The inner walls are made of stainless steel sheet and outer walls of CRCA sheet. The space between the two walls is filled with mineral wool for insulation. The chamber is fitted with two adjustable perforated shelves for keeping the test specimen or the test equipment on. The oven is heated electrically with the help of heaters placed in ribs on the bottom and sides of the chamber. (An air circulating fan is provided on the back of the chamber for even temperature distribution) the temperature inside the test chamber is indicated and controlled by the digital temperature controller. The chamber is provided with two ports with adjustable openings for enabling natural change of air inside it by convection. These ports can also be used for providing electrical access to the test specimen kept inside the oven if so desired.

Specifications :

• No. of Trays : 2
• Display : Digital
• Material : Stainless steel, Mild Steel
• Power Source : Electrical
• Type : Hot Air

Additional Information:

• Item Code: VSLIC9013
• Delivery Time: 1 Week
