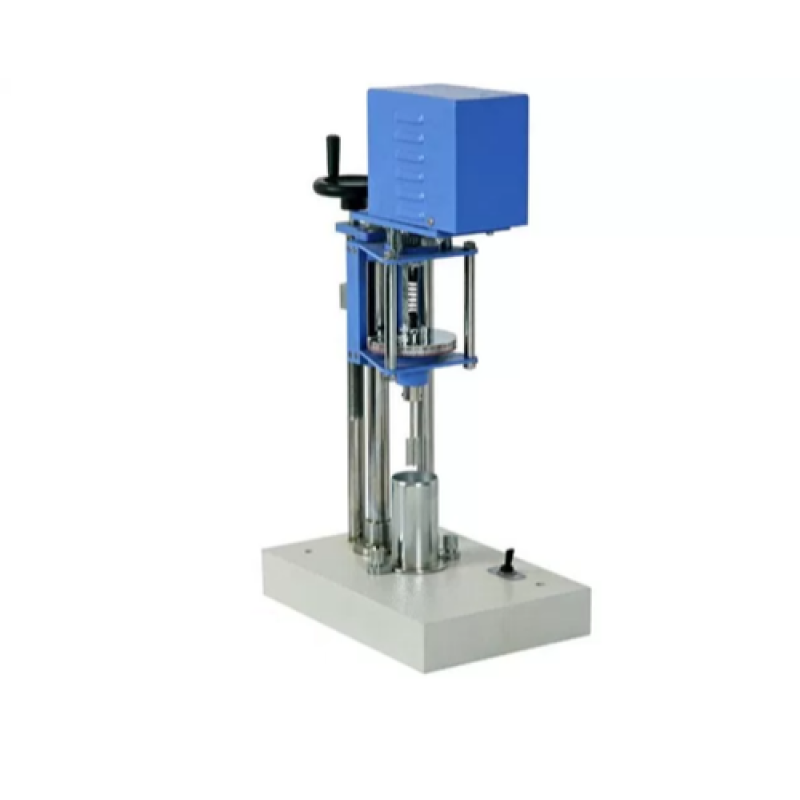

Laboratory Vane Shear
Product Details :
Automation Grade | Manual |
Brand | Vertex |
Voltage | Customize |
Power | Customize |
Capacity | Customize |
Model Name/Number | VSLIC-S177 |
Country of Origin | Made in India |
Laboratory Vane Shear Apparatus Consist of a special motor, adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen.
Rotation of the vane is by means of an electronic motor turns the upper end of a calibrated torsion spring to give a rotation of 0.1 degree/sec.
The vane shaft is attached through the hollow upper shaft to resettable pointer which indicates the angle of torque on a dial graduated in degrees. The die reading multiplied by spring factor gives torque.
Additional Information:
- Item Code: VSLIC-S177
