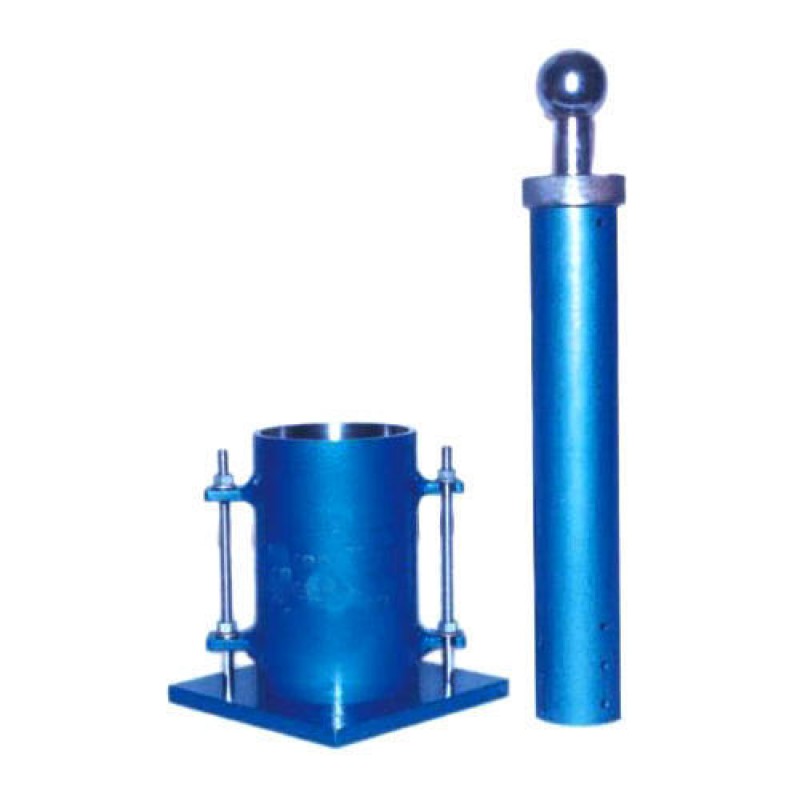

Proctor Compaction Test Apparatus
Product Details:
Proctor Compaction Test Apparatus is a fundamental requirement for the construction of earth fill for dams, reservoirs, canal embankments, highways, railways and runways. The relationship between soil moisture content and compacted dry density is very useful for deciding construction specifications and quality control of compacted earth fill. The construction quality control is essential to check the density of compacted soil achieved in the field, thereby checking its strength.
Specifications

• Weight of the hammer(hammer weight): 2.5Kg
• Diameter of the hammer: 50mm

• Drop: 300mm
• Dimension of the compaction mould: Φ100×127mm

Cat No. & Name	Compaction Mould, complete with Collar and Base Plate	Compaction Rammer	Quality Standard
AT-031 (a) Proctor Compaction (Light) Test Apparatus	100mm Internal Dia x 127.3mm Height, 1000ml volume (Mild Steel)	2.6kg x 310mm fall.	As Per IS: 2720(P-VII)
AT-031 (b) Proctor Compaction (Light) Test Apparatus	100mm Internal Dia x 127.3mm Height, 1000ml volume (Gun Metal)	2.6kg x 310mm fall.	As Per IS: 2720(P-VII)
AT-031 (c) Proctor Compaction (Heavy) Test Apparatus	150mm Internal Dia x 127.3mm Height, 2250ml volume (Mild Steel)	4.89kg x 450mm fall.	As Per IS:2720(P-VIII)
AT-031 (d) Proctor Compaction (Heavy) Test Apparatus	150mm Internal Dia x 127.3mm Height, 2250ml volume (Gun Metal)	4.89kg x 450mm fall.	As Per IS:2720(P-VIII)
