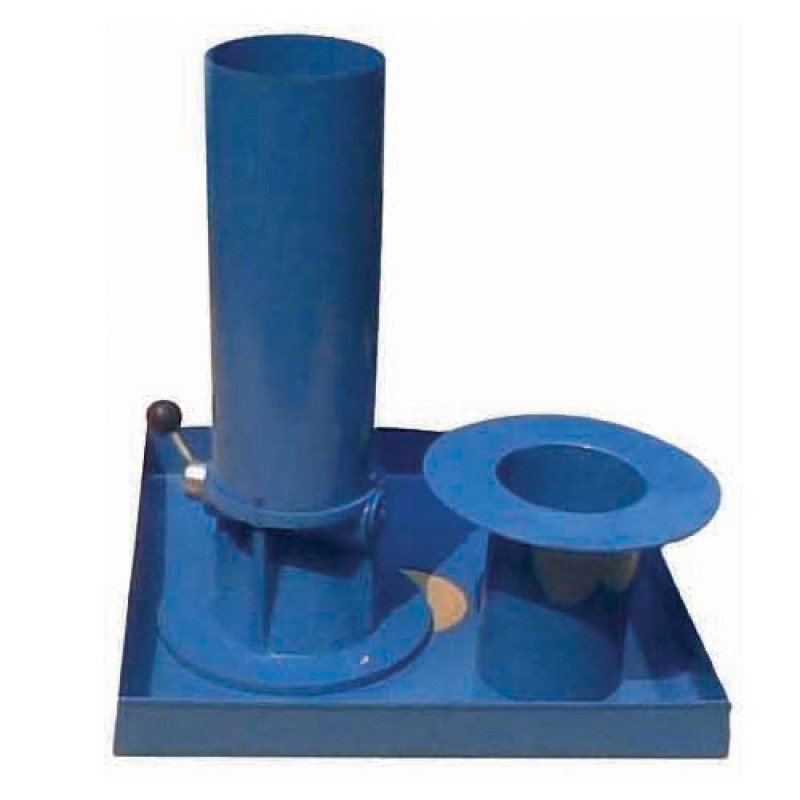

Sand Pouring Cylinder

Model No.: SMEW-0015

Standards : IS 2720 (PART XXVIII) 1966

Specification : This apparatus is used for the in place determination of the dry density of compact, line and medium grained soils and for layers not exceeding 500mm thickness. The complete apparatus consists one each of Small sand pouring cylinder, 3 litre capacity fitted with conical funnel and shutter. Cylinder calibrating container, internal dia 100mm and 150mm height.

Accessories : Metal tray, 300mm square and 40mm deep with hole.

Note: Sand pouring cylinder Medium (150mm) and Large (200mm) as per IS 2720 (P-XXVIII) also available.
