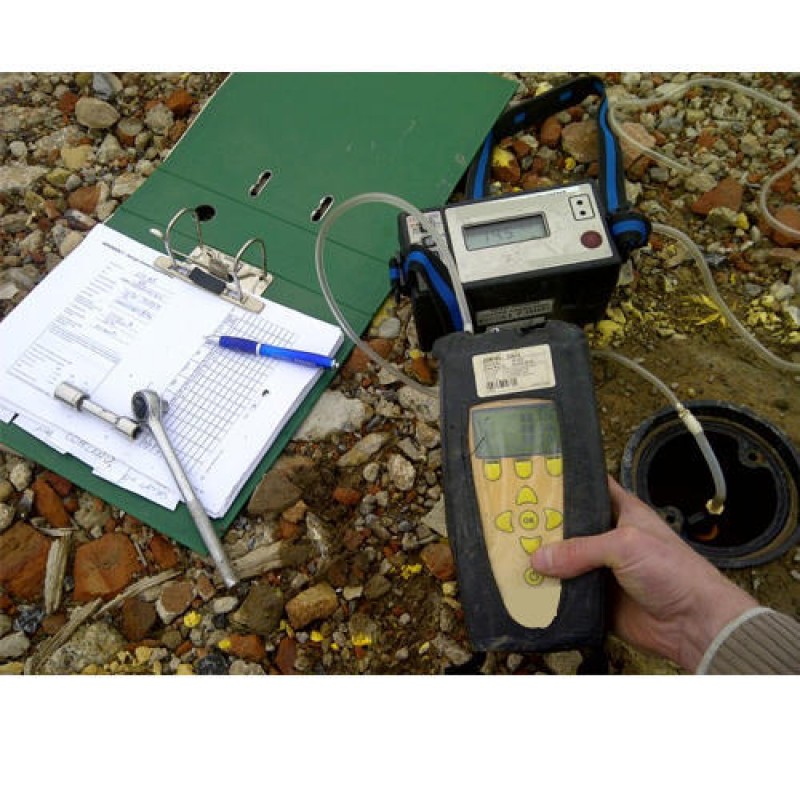

Site Investigation Equipment
Product Details :
| Hand Boring and Sampling | 38 to 150mm diameter |
| Standard Penetration Test Equipment | 35mm samples |
| Hydraulic Jack Capacity | Upto 500kN |
The section lists equipment of Site Investigation Equipment the proportion of soil by obtaining samples or carrying outin-situ tests such as penetration and shear. Local conditions and the amount of data required will determine whether light hand boring tools will suffice or sophisticated penetrometers are called for.
Product Details:
| Cat No. | Description | Performance or Remarks |
| 272 | Thin wall piston sampler | 50mm dia samples used for softclays and slits. |
| 273 to 278 | Pressing and Extraction Tripod, Weight etc. | 15 m depth , field investigation |
| 284 | Pressuremeter, GA type, Ax & Bx probe | |
| 285 | Pressuremeter, GA type, Ax probe | |
| 286 | Pressuremeter, GA Type, Bx probe | |
| 288 | Sub-soil Deformeter, Ax probe | |
| 289 | Sub-soil Deformeter, Bx probe | |
| 291 | Mini Pressuremeter | |
| 296 to 298 | Static Cone Penetrometers hand Operated and Engine Driven | Machines upto 100kN (10,000kgf) Depth upto 30m. |
| 299 to 300 | In-situ vane shear apparatus and vane borer | 30m depth 2000kg-cm torque and and 600 kg-cm torque |
| 301 | Torvane | Samall instrument for checking samples |
| 302 to 305 | Plate bearing equipment | Hydraulic jack upto 500kN cap. with plate upto 75x75cm. |
