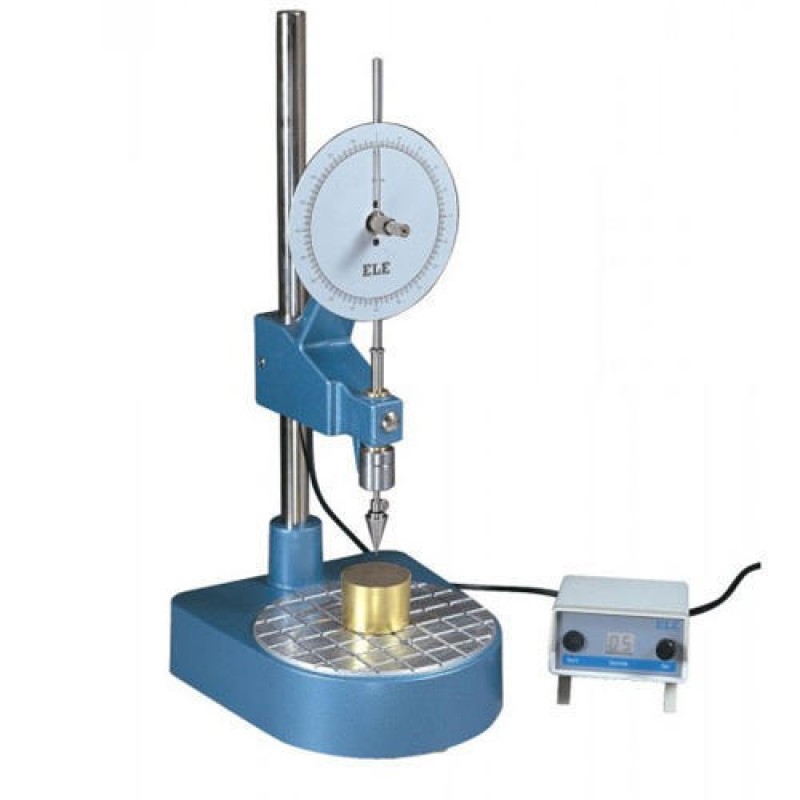

Soil Cone Penetrometer
Product Details:
Soil Cone Penetrometer of Soil is based on the relationship between moisture content and the penetration of the cone into the soil sample. The moisture content at a given depth of penetration of the cone is taken as the liquid limit. The Automatic Penetrometer (Digital Timer) is supplied complete with a stainless steel penetration test cone 35mm long with a smooth polished surface and an angle of 30° and a Penetration test cup 55mm DIA x 40mm deep. Facility exists for adjusting cone height in relation to the specimen.
Specifications
- The apparatus is suitable for operation on 220V, Single Phase, 50Hz, AC Supply
- Stainless steel penetration test cone 35mm long
- Angle: 30°
- Penetration test cup: 55mm x 40mm
