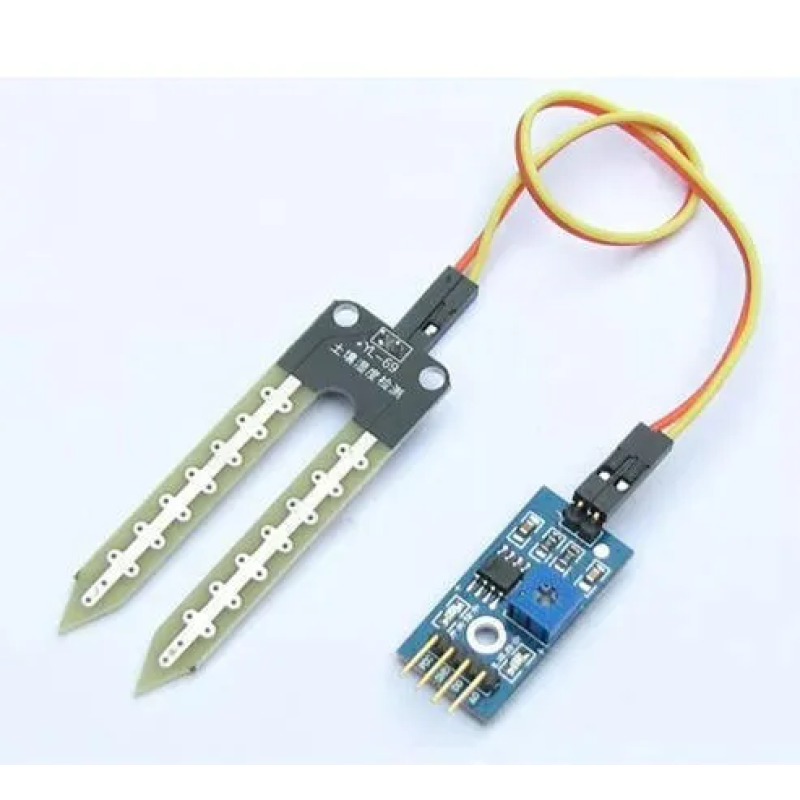

Soil Moisture sensor
Soil Moisture sensor
Product Details:

Type
Capacitive
Operating Voltage
3.3 to 5.5 V DC
Output Voltage
0 to 3.0 V DC
Operating Current
5 mA
Accuracy
+-2% in the range of 0-50%; +-3% in the range of 50-100%
Response Time
<1s


Soil moisture sensors measure the volumetric water content in soil.Since the direct gravimetric measurement of free soil moisture requires removing, drying, and weighing of a sample, soil moisture sensors measure the volumetric water content indirectly by using some other property of the soil, such as electrical resistance, dielectric constant, or interaction with neutrons, as a proxy for the moisture content.
The relation between the measured property and soil moisture must be calibrated and may vary depending on environmental factors such as soil type, temperature, or electric conductivity. Reflected microwave radiation is affected by the soil moisture and is used for remote sensing in hydrology and agriculture. Portable probe instruments can be used by farmers or gardeners.
Soil moisture sensors typically refer to sensors that estimate volumetric water content. Another class of sensors measure another property of moisture in soils called water potential; these sensors are usually referred to as soil water potential sensors and include tensiometers and gypsum blocks.
