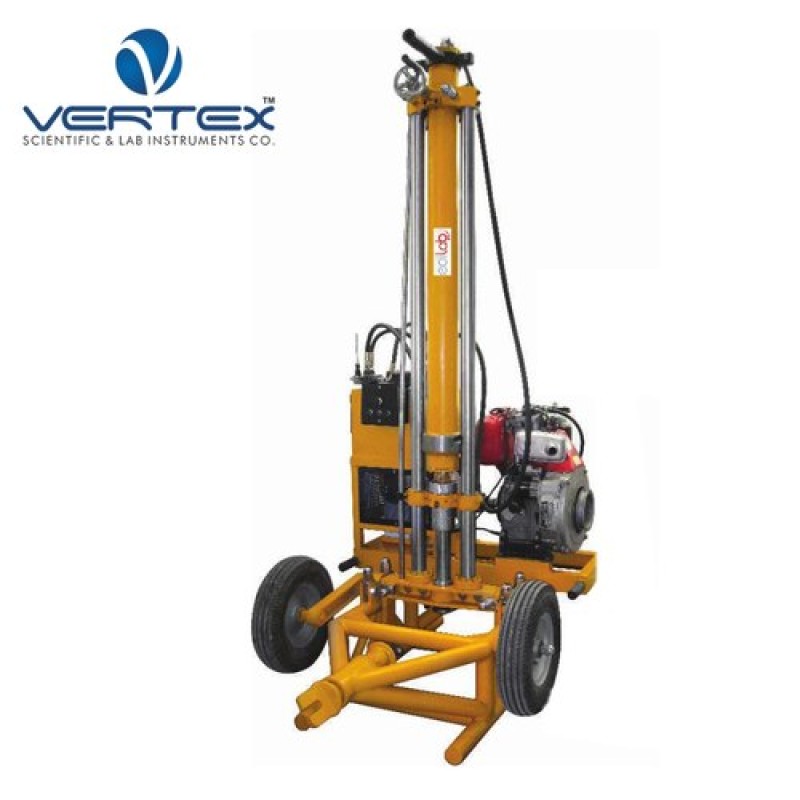

Static Cone Penetrometer Capacity 100Kn (10,000kgf) (Diesel Engine Driven)

Product Details :

IS 4968 (PART III)

• For reaching greater depths and to facilitate easy and constant rate of penetration 1 to 2.5cm/sec of the cone this engine-driven Static Cone Penetrometer of 100 KN (10,000 Kgf) capacity is preferable. The equipment consists of a hydraulic pump driven by a Diesel Engine. The whole system is mounted on a tow able trolley fitted with pneumatic wheels. The pumping unit and ram are connected by means of flexible pipes through a direction control valve. The hydraulic ram moves on a two pillar stand mounted on a trolley.

Following accessories comes with machine.

• Penetration Cone, steel 60 cone angle, 10cm2 base area, with friction jacket One
• Mantle Tube, 36mm uniform OD with sounding Rod working length 1 m Thirty
• Load Measuring Head, with Automatic cut-off valve, and oil can without pressure gauges. One
• Pressure Gauge, 0-600 x 5 kg/cm One
• Pressure Gauge, 0 100 x 1kg/cm One
• Trusses Two
• Screw Anchor 45 cm Six
• Screw Anchor 30 cm Six
• Screw Anchor 20 cm Six
• Screw Anchor Rod with cone Six
• Driving handle for Screw Anchor One
• Extension Pipe for Handle Four
• Clamping Screw with Nuts Six
• Extractor Tube with Connector One
• Tarpaulin Cover One

Additional Information:

• Item Code: VSLIC-S104
• Production Capacity: 100kN
• Delivery Time: 15-20
• Packaging Details: Wooden Pacakaging
