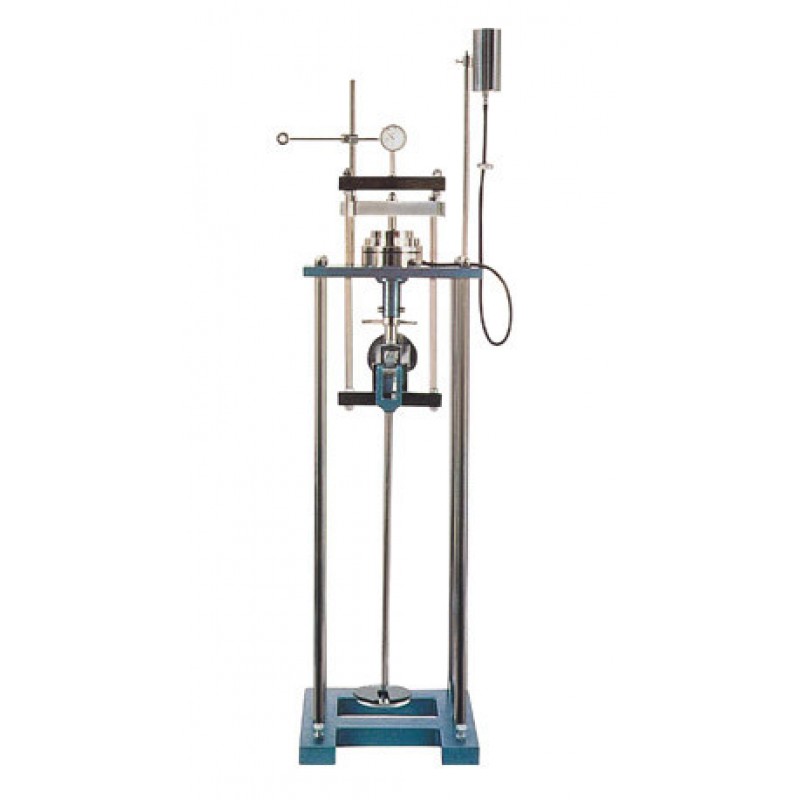

consolidation Test apparatus - Single gang
Product Details:
Minimum Order Quantity | 1 Unit |
Automation Grade | Semi-Automatic |
Surface Finishing | new |
Dial Gauge | 0.01 x 25 mm travel |
Country of Origin | Made in India |
Consists of : |
Loading Unit, maximum capacity 20
kg/cm² consisting of a |
loading yoke connected to a lever
arm with a counter-balancing |
adjustment and having a lever
ratio of 1:10, the whole |
assembly being mounted on a steel
frame stand. Consolidation |
cell assembly, fixed ring type for
testing 60mm dia x 20mm |
thick specimens comprising: Fixed
ring for specimen 60 mm |
dia x 20 mm thick with a guide
ring. |
Top porous stone for 60mm dia,
specimen. Bottom |
porous stone for 60 mm dia
specimen. |
Pressure Pad, perforated. |
Channelled base with water inlet. |
Gasket. |
Flanged water jacket. |
Set of weights to give a pressure
of 10 kg/cm2 on 60 mm |
specimen Comprising : 7 off 0.05
kg/cm2, 5 off 0.1 kg/ cm2, |
6 off 0.2 kg/ cm2, 6 off 0.5 kg/
cm2 and 5 off 1.0 kg/ cm2. |
Water reservoir with plastic tube,
T-Connection and pinch cock |
Dial gauge, 0.01 mm x 25 mm travel
single Gang. |
