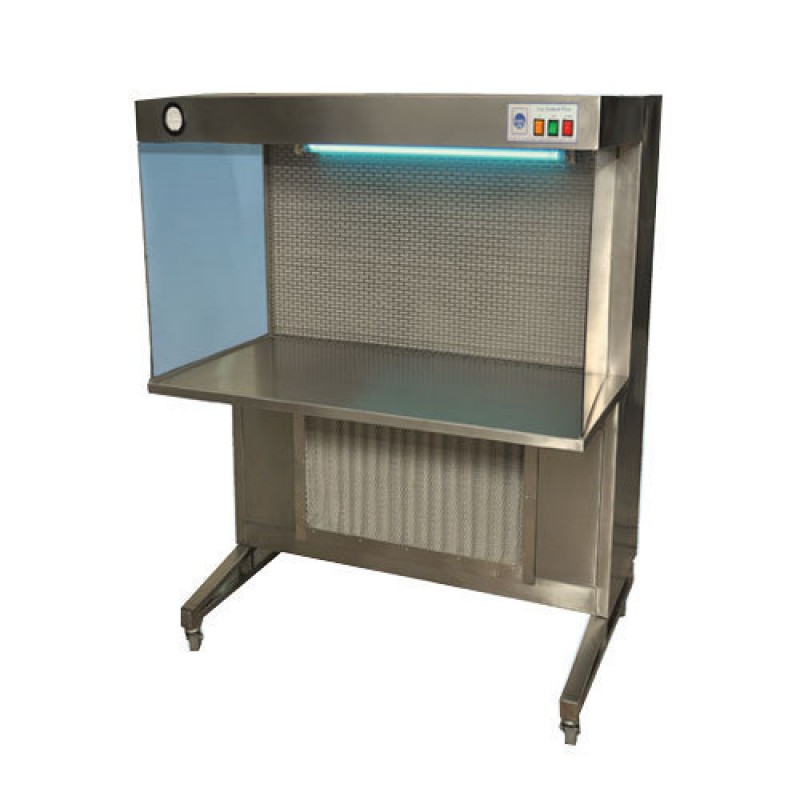

Laminar Flow

Product Details:

Type Vertical
Material complete SS
Surface Finish Polished
Air Flow Vertical & Horizontal both option available on request
Model Name/Number HLF
Size 2ft x 2 ft . 3ft x 2 ft , 4ft x 2ft , 6ft x 2 ft
Height 60"
Voltage 230 VAC
Color SS mat Finish outer
Power Supply 3 pin Plug 5 A
Noise Level >60dB

Features

• LCD Informatic Panel
• Lighting Type Visible & UV Light
• Light Intensity (Lux) 900 - 1300 Lux
• Sound Level Washable with an arrestance upto 90% at 5 microns
• Prefilter Greater than 99.997 % at 0.3 microns with DOP test


Models
	HL-32	HL-50	HL-75	HL-100
External Dimension (WxDxH)mm.	810x740x1160	1270x740x160	1890x740x1160	2545x740x160
Work Area (WxDxH)	715x520x585	1175x520x585	1795x520x585	2450x520x585
HEPA Efficiency:	Between 0.4 to 0.5m/s ± 20%
Cleanliness	Federal standerd 209 E Class 100

Additional Information:

• Delivery Time: 3-4 weeks
•  Packaging Details: Coregulated / Wooden
• Production Capacity: 10 PC/ PM
