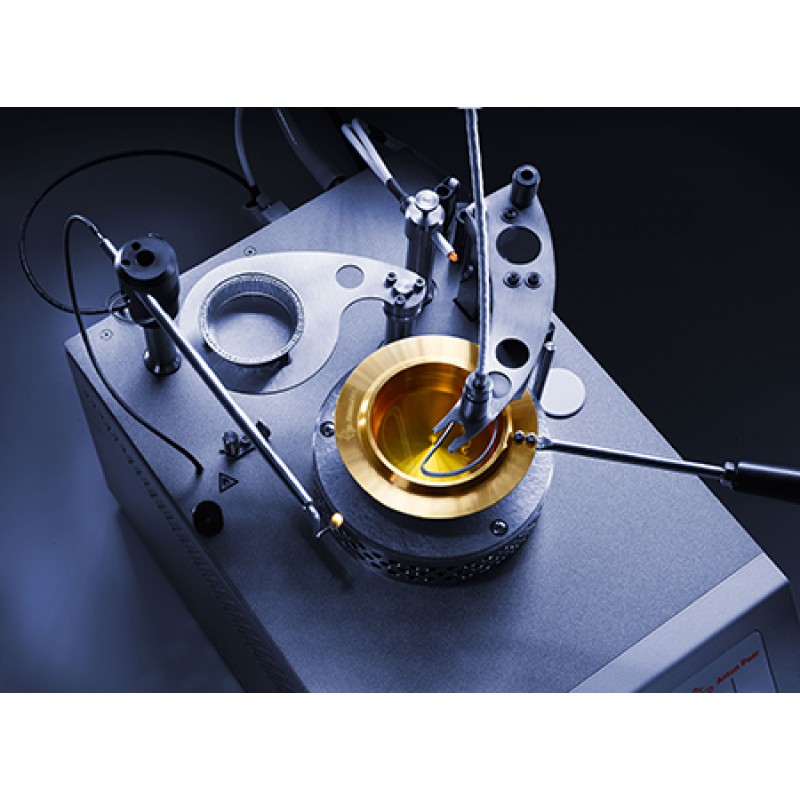

Cleveland Flash & Fire Point Tester:

CLA-5

• Cleveland open-cup flash point tester (ASTM D92, ISO 2592, and more)
• Flash and fire point testing of lubricants and bitumen
• Safety: automatically lights up the test flame, relights it, and suppresses the gas source at the end of the test

The automatic Cleveland Open-Cup (COC) measures and describes the properties of a sample in response to heat and a test flame under controlled conditions. The flash point measures the tendency to form a flammable mixture with air while the fire point indicates the tendency of sustained burning.

CLA 5 is suitable for flash and fire point applications of lubricants or bituminous material.

Key Features

Benefits at a Glance

• Memory for 1000 tests, 20 operators, 100 sample names, 21 test methods
• Statistical analysis (Min, Max, Mean, Repeatability)
• Measures flash points of silicone samples without any problems
• Automatically lights up the test flame, relights it by an electric igniter and suppresses the gas source at the end of the test

Convenient Operation

• Test initiation by pre-installed standard test methods and ability to customize methods by 10 user-defined programs.
• Alert messages for out-of-spec results
• Pt100 sample temperature probe calibration either by dynamic calibration against certified ASTM thermometer or by correction table with 21 calibration points.
• Calibration protocol printout
• 5.7” color graphics display shows real-time measurement
• Menu navigation by jog shuttle system with easy turn-and-push operation and color-coded LED indication for each operation mode
• Data handling via USB stick for import into MS Excel® or to LIMS

Customized User Flexibility

• PC-software FPPNet (optional) for convenient remote handling and test data storage
• Automatic skin removal kit (optional)
• Draft deflector (optional)
• Stainless steel sample temperature probe Pt100 (optional)
