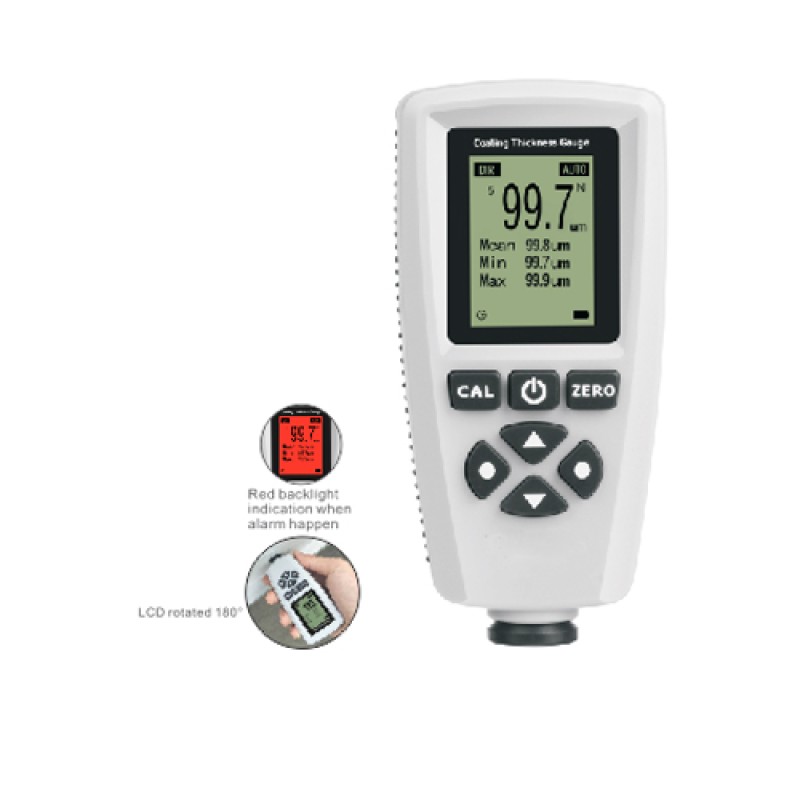

Coating Thickness Gauges
RT-770 / RT-770S
DESCRIPTION
- Professional High Accuracy Coating Thickness Gauges
- These gauges can be used for non-destructive coating thickness measurement of nonmagnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
FEATURES
- High accuracy and stability
- 128*128 dot matrix LCD display and menu interface
- LCD can be rotated to be used easily
- LCD shows mean, maximum, minimum and standard deviation
- User can set alarm limit and red backlight indication
- Readings can be stored, recalled and deleted
- Easy to do zero calibration and support multi-point calibration
- Connect with PC via USB and download readings
- Multi-language supported
- Up to 5 measurement groups supported
- Automatically detect the substrates type(F or N)
Specifications :
| RT-770 | RT-770S | |
| Measuring principle | Magnetic induction(F) Eddy current(N) | Magnetic induction(F) Eddy current(N) |
| Measuring range | 0 to 1500um | 0 to 2000um |
| Accuracy | ±(2.5%+1um) | ±(2 %+1um) |
| Resolution | 0~99.9um(0.1um), others(1um) | 0~99.9um(0.1um), others(1um) |
| Units | um, mm, mils | um, mm, mils |
| Size / Weight / Case Material | 113mmX53mmX24mm/80g/ABS | 113mmX53mmX24mm/80g/ABS |
| Power supply | Two 1.5V AAA battery | Two 1.5V AAA battery |
| Operation environment | Temperature: -10 to 50ºC | Temperature: -10 to 50ºC |
| Storage environment | Temperature: -10 to 60ºC | Temperature: -10 to 60ºC |
| Readings memory | 320 reading for RT-770, 2000 readings for RT-770S | 320 reading for RT-770, 2000 readings for RT-770S |
| Standard / Certificates | CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003 | CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003 |
