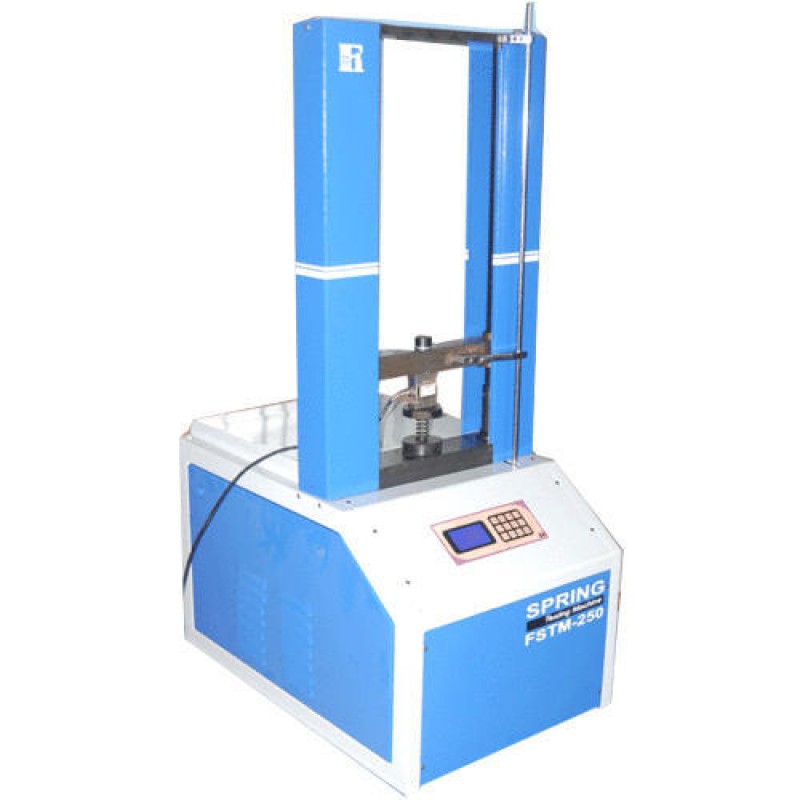

Coil Spring Testing Machine
Product Details :
Backed by an experienced team of professionals, we are able to serve our valued clients with a wide range of Coil Spring Testing Machine. These machines are assembled using high-grade components for durability at the vendor’s end. Our range is applicable in almost all the manufacturing industries for testing their products on various parameters to ensure their reliability. We never compromise with the excellence of products, thus ensure that our range is in accordance with the set industrial standards.
Specifications :
- Operation : Hand operated - Manually
- Capacities : 50 N, 500 N, 1000 N, 2000 N Maximum
- Load Measurement : By Load Cell
- Displacement : By Rotary Encoder
- Resolution : 12000 Counts for Maximum Load 0.2 N - For 2000 N Load Cell
- Display For Load & Displacement : LCD Display
- Resolution of Displacement : 0.01 mm
- Vertical daylight : 350 mm
- Load Accuracy : ±1% From 4% to 100% Load Cell Capacity
- Tension Shackles Provided : For Tension Springs
- Compression Plate Provided : For compression Springs
- Overall Dimensions (L x W x H) : 500 x 400 x 1100 mm Approx.
