Spray Rating Tester

Product Description

Spray Rating Tester - ITEM CODE: KTS-029

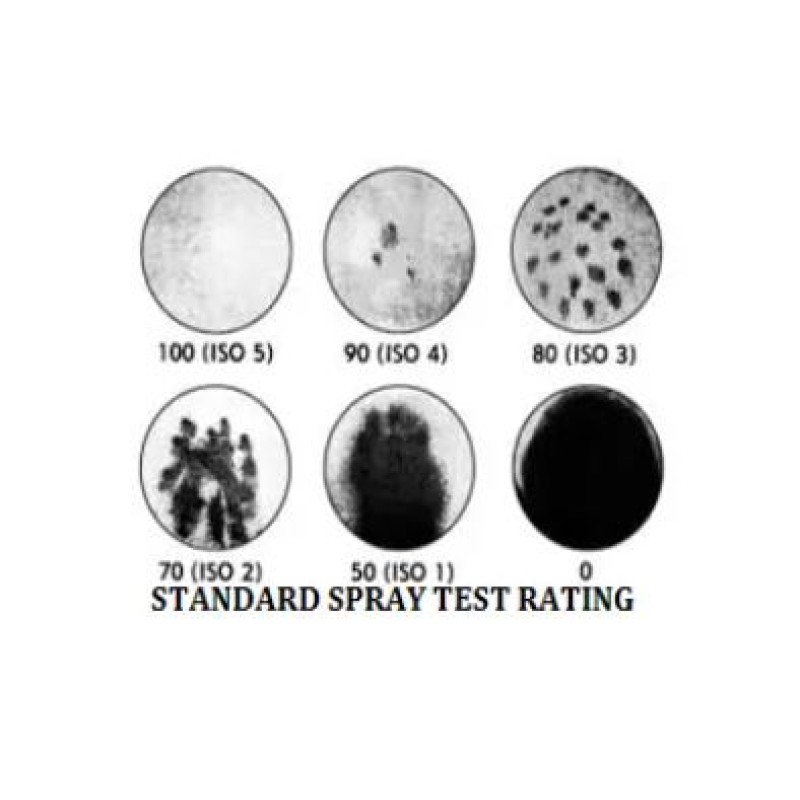

The Spray Test is a simple method to determine the resistance of any fabric, which may or may not have been given a water-resistant or water-repellent finish, to surface wetting by water. It is not intended to predict waterproofness, since it does not measure the penetration of water through fabric. Stainless steel standard nozzle as per AATCC standard Specimen at 45°.

TECHNICAL DETAILS

 Size of test specimen: 180 x 180 mm square. Spray nozzle: Converse face with 19 holes.(Center-1, First circle-6, Second circle-12) , Rate of water spray : 250 ml in25 to 30 seconds , Position of test specimen : Mounted on a ring and placed at an angle of 45°,  Distance between center of spray : 150 mm (±2 mm) , Nozzle and center of the specimen Holder Dia.: 150mm (±5 mm) , Plastic funnel dia. : 150 mm (±5 mm) , Height of the funnel with nozzle : 200 mm (±10 mm) , Weight: 4.5 Kg., Dimension : Length:  16.5Inch, Width: 12 Inch,  Height 19 Inch, STANDARDS:  AATCC 22 / ISO 4920
