Conditioning Chamber
Product Description

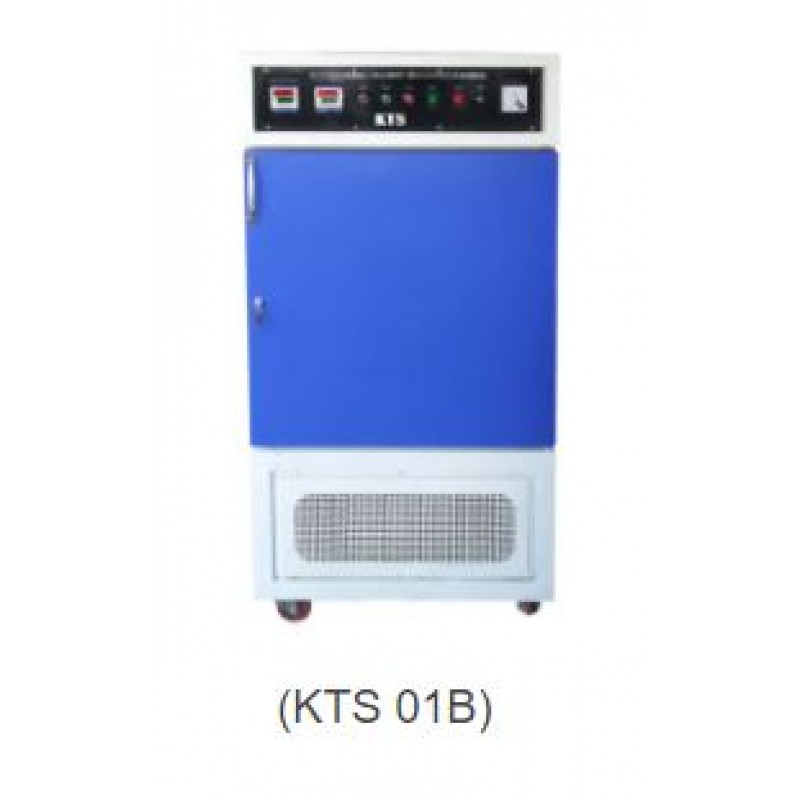

Conditioning Chamber : ITEM CODE:KTS013
Microprocessor based Conditioning Chamber is an ideal to condition sample prior to testing. The textile conditioning unit is specifically designed to rapidly bring textile samples to the standard condition of 21‚°Cand 65% RH (tolerance of ‚±2‚°C and ‚±2% RH). Depending on the weight of the sample.
Features:
- Wet bulb setting for Rh
- Powerful Algorithm for Precise Control.
- Auto Selection of Heat or Cool for Dry Bulb TemperatureControl & Humidification Or Dehumidification For Rh Control.
- R.H. Control From 40 To 90% With Dry Bulb Anywhere From10To 60 Deg C.
- Incorporates Safe Control At All Boundaries.
- Compressor Interlock with Set Temperature.
- Continuous Display of Dry Bulb & Wet Bulb. As Well AsSelectable Display Of Traveling Set Point For Both. Sensor: Pt 100 for Dry AndWet
- Outputs: Control Outputs, Optional Auxiliary Outputs throughRelays.
- Accuracy: +/- 1 Deg C. For Dry Bulb & +/- 3% for R.H.
Safety Features:
- Compressor Time Delay Circuit.
- Compressor Overload Relay Protector.
- The Design Of The Chamber Is Most Ideal To Set ConditionsWhich Gives Uniformity Of Temperature Throughout The Chamber And Also SavesValuable Power Consumption.
- Supply: 230 volts Ac Single Phase Supply
- Wattage: 2 K.W.
- Power Consumption: 2 Units /Hour
- CAPACITY: 170 LTRS
- DIMENSIONS: 50 X 40 X 85 CMS
