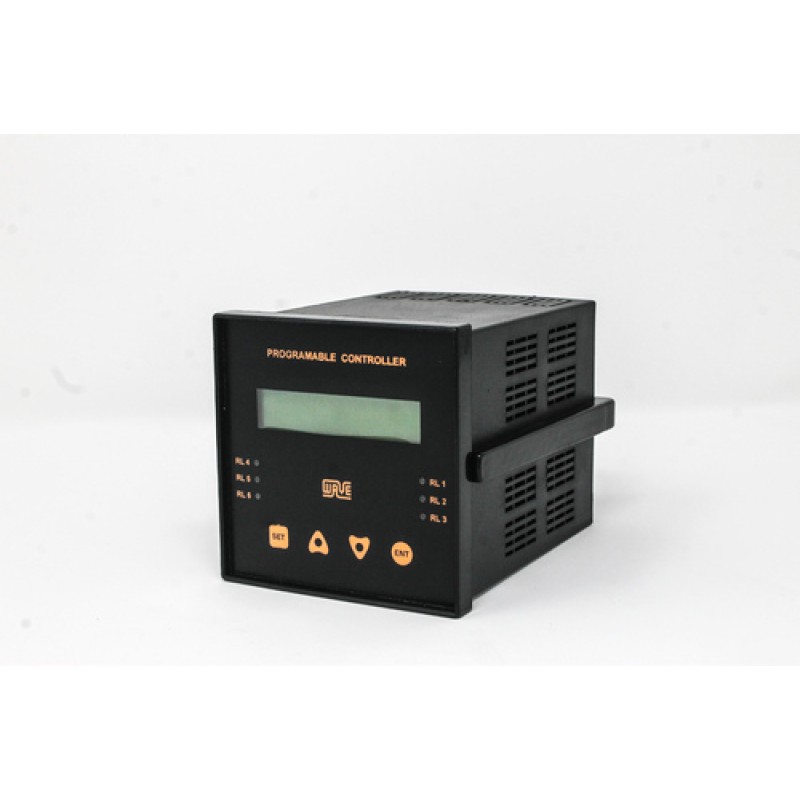

Cone winding Controller with length counter
Product Details :
Application | Laboratory |
Pole Type | Single Pole |
Throw Type | Single Throw |
Size | Size 96(w)x96(h)x85(d)mm (Model - WSC-1602)Microcontroller based, LCD IndicationSize 96x96x85mmSuppl |
Control Type | High Limit |
Brand | wave |
Color | Customized |
Material | polycarbonate |
Size/Dimension | Size 96(w)x96(h)x85(d)mm (Model - WSC-1602)Microcontroller based, LCD IndicationSize 96x96x85mmSuppl |
- Size 96(w)x96(h)x85(d)mm (Model - WSC-1602)
- Microcontroller based, LCD Indication
- Size 96x96x85mm
- Supply 220 V Ac
- 16x2 LCD Indication
- Count up
- 0 to 10VDC output and 4 to 20 mA output for speed control
- Total Length count up to 6 digits, Maximum 999999 Meter
- 4 Digit Meter/Minute or RPM Speed Indication as per Unit of Speed selection.
- 4 Digit Meter/Minute or RPM Speed set value Indication.
- Diameter 0 to 999.9 mm settable
- Sensing time setting 0 to 60 second.
- Output selection 0 to 10volt.
- Relay output Delayed on or Delayed off selectable
- Unit of Speed selection Mtr/Min or RPM.
- Power down memory for Total length & all set value
- LED Indication with blinking in hold mode
- Press Reset key for 2 seconds to reset total length count.
- Press start-stop key for Motor On, HOLD and Start operation.
- Proximity fails indication on LCD (S.er.).
Additional Information:
- Item Code: WSC-1602
