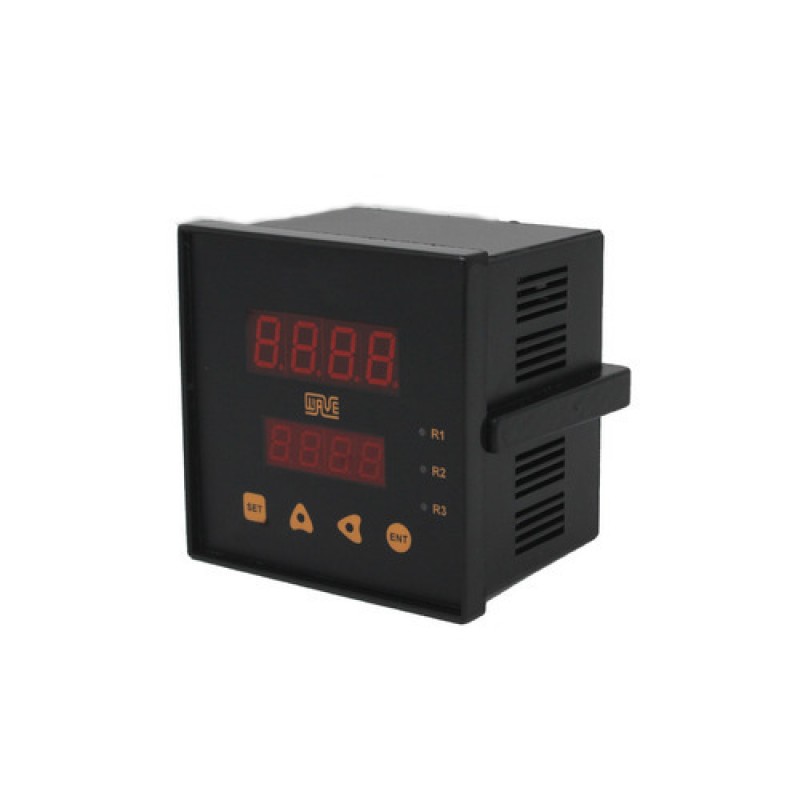

DC Ampere Hour Totalizer

Product Details :

• Size 48(w)x48(h)x85(d)mm (Model - DPM-2301-AHT)
• Size 72(w)x72(h)x110(d)mm (Model - DPM-2101-AHT)
• Size 96(w)x48(h)x110(d)mm (Model - DPM-2001-AHT)
• Size 96(w)x96(h)x85(d)mm (Model - DPM-2201-AHT)
• Microcontroller based, Four-digit dual display
• Supply 220 V Ac
• Input 0 to 75 mili volt dc
• Range 10 to 2000 selectable in 1 count resolution.
• Ampere/Minute or Ampere/Hour up to 9999 indication
• Relay output as per Auto reset or Manual Reset Function
• Settable 0 to 25 second auto reset time
• Settable corrections error for indication correction
• Configuration mode to avoid unauthentic entry.
• Power down memory selection
• Enter key to reset the total count.
• Over display, if signal input above 75mv

Additional Information:

• Item Code: DPM-2XXX-AHT
