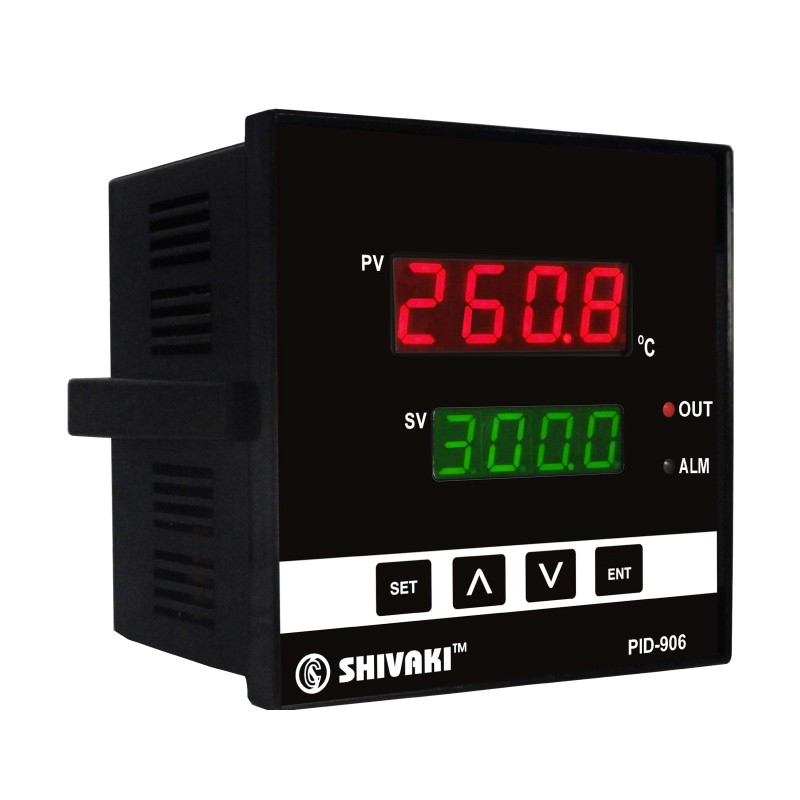

PID TEMP. CONTROLLER - DOUBLE DISPLAY

SPECIFICATION :

O) Microcontroller based, Double display

O) Supply 220 V Ac

O) Input J,K or RTD selection

O) Output: (1.) Relay/SSR Contact, (2.) Timer, Buzzer

O) PID or On/Off Control selection

O) Heating or Cooling Application selection

O) Range: J type 0-750 C

                 K type 0-1200 C

         RTD.1 Type -50.0 To 400.0 C

            RTD Type 0 To 400 C

O) Temperature As per range adjustable in set mode.

O) Soak time adjustable up to 9999 minute

O) High & Low Alarm 0.0 to 25.0 or 0 to 250 as per range adjustable

O) Power down memory selection

O) Ct 1 to 60 for ssr output & 10 to 120 second for Relay output adjustable

O) Auto tuning require for pb, It & dt value

O) Hysteresis 0.2 or 2 to 25.0c or 25c adjustable as per range selection for RTD

O) Hysteresis 2 to 250c adjustable as per range selection for J & K Type

O) Delay 0 to 250 second adjustable for cooling control

O) OPEn display if Sensor break & -rEV display if connections reverse.

O) Relay trip if sensor breaks, connection open or connection reverse.

O) End message if process complete

O) Calibration Error correction by front key switch (No preset setting)

O) Control Band setting

O) Ramp Band setting

O) Ramp setting Time or Temperature Base setting

Overview / Features :

• Double Display
• One Ramp Setting
• Size Available In

                9 6 X 96  | 72 X 72  | 48 X 48 MM
