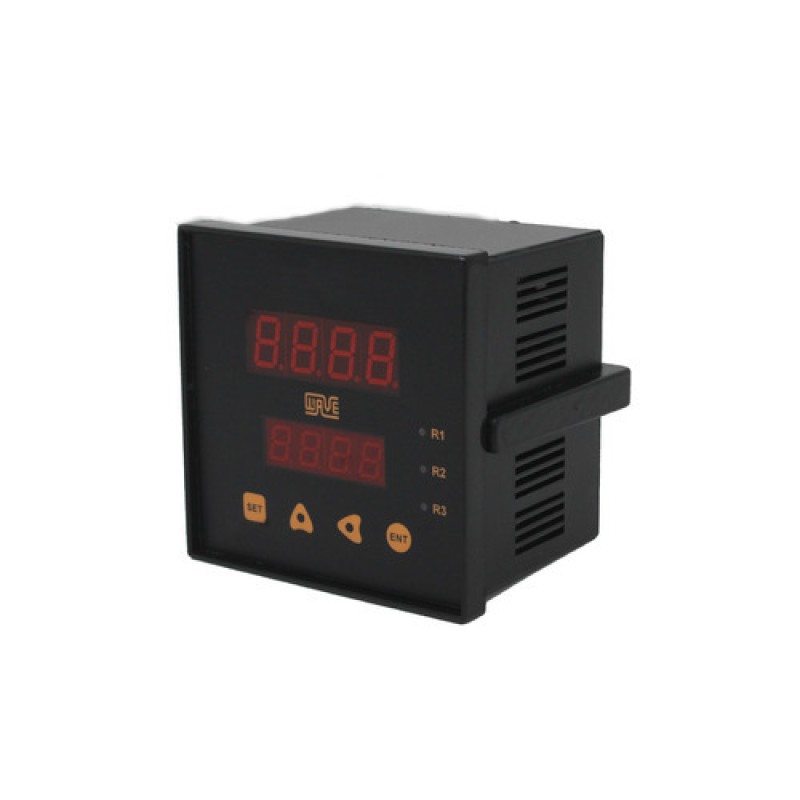

Parameter Indicator with Display Selection
Product Details :
Brand | wave |
Mounting Type | Panel Mount |
Display Type | Digital |
Application | Industrial |
Material | polycarbonate |
Size | Size 48(w)x48(h)x85(d)mm (Model - DPI-2301-SEL)Size 72(w)x72(h)x110(d)mm (Model - DPI-2101-SEL)Size |
- Size 48(w)x48(h)x85(d)mm (Model - DPI-2301-SEL)
- Size 72(w)x72(h)x110(d)mm (Model - DPI-2101-SEL)
- Size 96(w)x48(h)x110(d)mm (Model - DPI-2001-SEL)
- Size 96(w)x96(h)x85(d)mm (Model - DPI-2201-SEL)
- Microcontroller based, Double display
- Supply 230 VAC
- INPUT 4 to 20mA, 0 To 10v, RPM (Proxy Input)
- Configuration mode to avoid unauthentic entry.
- Range Minimum & Maximum adjustable 1 to 6000 Indication
- Selectable indication for Upper and Lower Display.(User cannot select same input for Upper and Lower Display)
- Resolution selectable for 4 to 20mA and 0 to 10V input
- Error correction for 4 to20 and 0 to 10V input.
- Nonvolatile memory for all parameter
- Element selection for Proxy input 1 to 99
Additional Information:
- Item Code: DPI-2XXX-SEL
