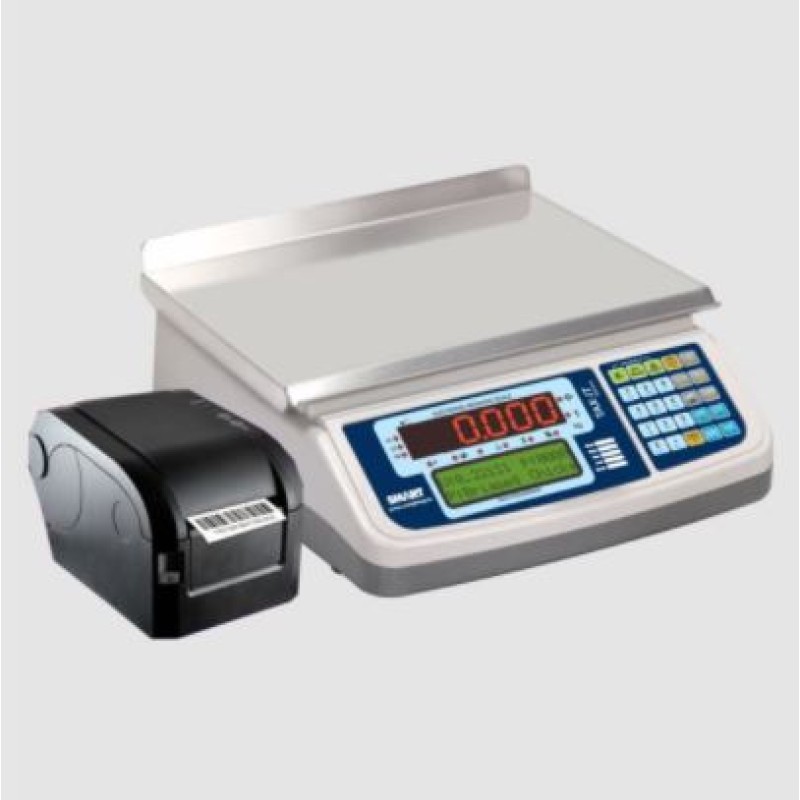

Customized Labeling Series

Application :

Piece Counting, Inventory Control, Stock Rooms, Check Weighing, Shipping department, Component Supplier

Description :

Functions

• PLU Management
• Unit Wt (By Sample / ID / Keyboard)
• RS232 / USB / PS2 Keyboard ports
• Counting with multiple Scales*
• Stock Control Module*
• Barcoding support*
• Audio Assisted Limits, quick operation
• Parts Accumulation Feature
• Fully Programmable with Front Panel
• Bi Directional RS232 for data output

Features :

• 4 Limits Types (Wt%, Qty%, U/L Qty, U/L Weight) Each PLU
• Both Labelling and Ticket Printing as same time
• Read / Dump PLU from USB Pendrive / Excel file*
• Print Label (on external printer) / Multiple Label Formats
• Alphanumeric data Entry for codes / description fields.
• ID code (16 digits), U. Wt (5 digits), Part Name (32 char), Location data (10 chars), tare weight (5 digits), Custom Label format, Barcode (Code 128, EAN13), Lot No
• Battery protected Built-in Real Time Clock

Specifications :

Memory

• Upto 1999 PLU Memory (299 Std)
• 4 Limit Types
• Pieces Accumulation
• Multiple Tare with PLU
• 4Megabit RAM/Upgradeable to 4MB
• Stock Movement

Display

• LED Bright Green Display
• 6-digit Weight
• 6-digit Unit Weight
• 6-digit No of Pieces

Working Environment

• Temperature : 0°C to 50°C
• Humidity : 85% RH, non-condensing

Dimensions / Weight

• Platter : 345mm x 290mm
• Net Weight : 6.6kg (without Battery)

Reports* (Only with receipt printer)

• PLU Listing
• Delivery Ticket
• PLU wise Movement
• Duplicate Ticket
• Custom Label Formats
• Hourly Sales

Power

• 240VAC, 50/60 Hz
• 12 VDC/3.3Ah rechargeable battery (Lithium lon battery option available)

Other

• Zero / Tare
• Scale1 / Scale2
• Printer Feed
• RF Connectivity
• Date/Time
• Relay / Filling

Options

• Label Printer Zebra / Argox / Sato / Datamax
• Traffic Tower Kit / Relay Outputs
• Barcode Scanner Support
• 12 VAC/7Ah rechargeable battery
• USB Mass Storage / Thump Drive
• PS2 Keyboard / Scanner Support
