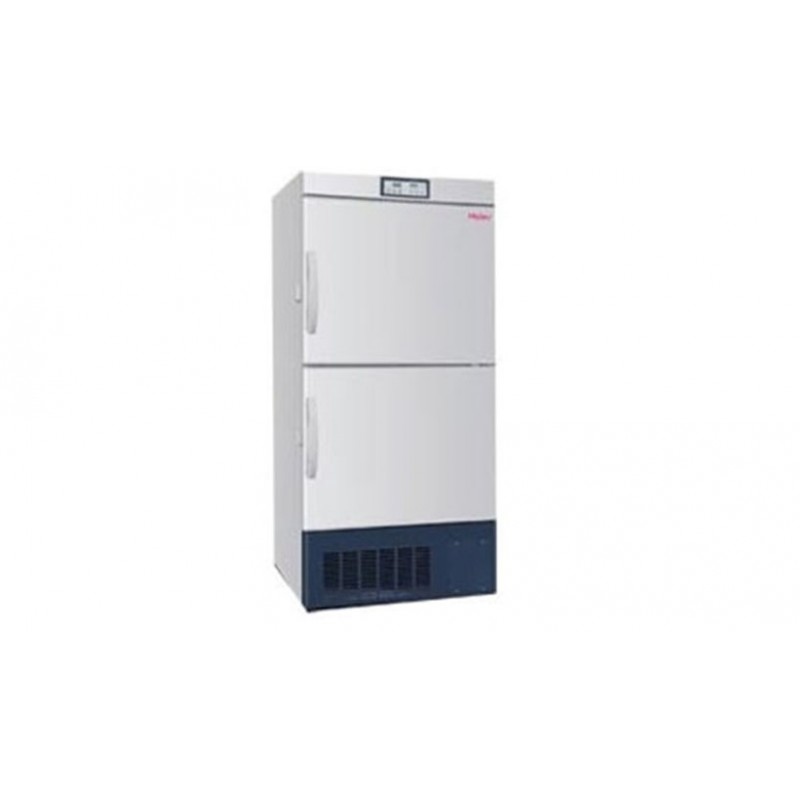

Deep Freezer cum Refrigerator
Double walled with inner chamber made of S.S. and outer of thick PCRC sheet duly powder coated. Freezer and refrigerator are housed in one external body with individual digital control system, refrigeration system and outer door.
Temperature of Deep freezer ranges from ambient to -20°C & that of Refrigerator ranges from ambient to 2°C . The gap between the inner and outer wall is filled with high grade PUF insulation to avoid thermal loss. Body is mounted on a sturdy angle iron frame and is mounted on castor wheels. Unit is fitted with separate Micro Processor Digital Temperature Indicator-cum controller.
Salient Features
- Available in Horizontal / Vertical models
- Separate compartment for Deep Freezer & Refrigerator
- Inner chamber made of stainless steel SS and outer chamber made of mild steel duly powder coated
- Inside temperature of deep freezer ranges from ambient to -20°C with accuracy of °C
- Inside temperature of refrigerator ranges from ambient to 2°C with accuracy of °C
- Inner chamber and trays made of SS.
- High grade PUF insulation to avoid thermal loss
- Microprocessor digital temperature indicator cum controller
- Temperature uniformity of ±0.5°C inside Deep Freezer & Refrigerator
- Frost free design
- Specially designed controller for audio visual deviation alarm from the preset temperature, door open alarm.
- Self closing door along with key door lock facility
- Quick freezing function
- Caster wheels for easy mobility
- Eco friendly compressor with CFC FREE refrigerants
- Power Requirement: Stabilized 230V, 50Hz , 20Amp single phase supply.
- 2 to 4 no of adjustable trays / shelves
Specification
Model | Capacity (Liters) | Deep Freezer Volume (Ltrs) & Internal Dimension (L x W x D cm) | Refrigerator Volume (Ltrs) & Internal Dimension (L x W x D cm) | Approx Weight (Kg) |
SAII RDP-224A | 224 | 40 x 40 x 46 cm , 74 Ltrs | 45 x 45 x 75 cm , 150 Ltrs | 140 |
SAII RDP-224B | 224 | 45 x 42 x 60 cm , 112 Ltrs | 45 x 42 x 60 cm , 112 Ltrs | 140 |
SAII RDP-224C | 224 | 45 x 45 x 75 cm , 150 Ltrs | 40 x 40 x 46 cm , 74 Ltrs | 140 |
|
|
|
|
|
SAII RDP-380A | 380 | 45 x 47 x 60 cm, 128 Ltrs | 60 x 60 x 70 cm , 252 Ltrs | 190 |
SAII RDP-380B | 380 | 50 x 51 x 75 cm , 190 Ltrs | 50 x 51 x 75 cm , 190 Ltrs | 190 |
SAII RDP-380C | 380 | 60 x 60 x 70 cm , 252 Ltrs | 45 x 47 x 60 cm, 126 Ltrs | 190 |
|
|
|
|
|
SAII RDP-600A | 600 | 55 x 55 x 67 cm , 200 Ltrs | 68 x 65 x 90 cm, 400 Ltrs | 270 |
SAII RDP-600B | 600 | 63 x 60 x 80 cm , 300 Ltrs | 63 x 60 x 80 cm , 300 Ltrs | 270 |
SAII RDP-600C | 600 | 68 x 65 x 90 cm, 400 Ltrs | 55 x 55 x 67 cm , 200 Ltrs | 270 |
Optional
- Outer body made of SS 304
- 7 days circular temperature chart recorder
- Touch screen colour display HMI
- Inbuilt Voltage stabilizer & UPS
- RS 232 port with communication software for PC interface
- Audio visual power failure alarm
- Programmable 64 bit PLC controller with touch screen color display HMI. Models fitted with these controllers require minimum human intervention. (Single PLC & colour display is sufficient for Refrigerator & Deep Freezer. No need to buy separate PLC controller & display for separate compartments)
