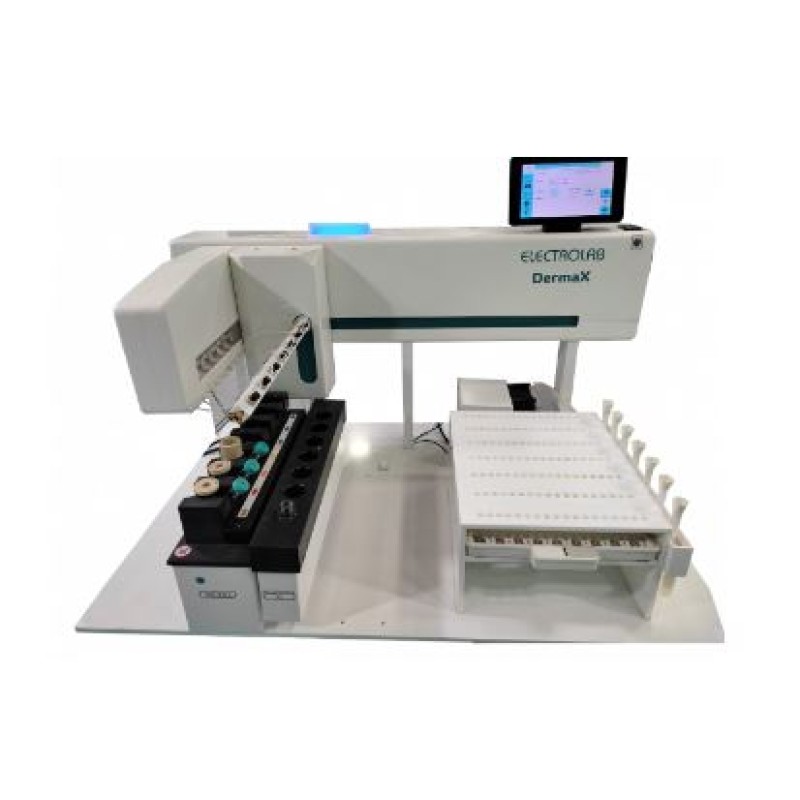

DermaX (Auto)
Product Details :
- Cells available in variable sizes provides flexibility
- Variable volumes possible due to swappable stirrers provides flexibility
- Low evaporation cap attached to the cell prevents evaporation
- All components made from inert material avoids contamination and compatibility issues
- Sensors for identification of sample tray type and tray alignment prevents error, brings convenience
- Specially designed towards-gravity sampling syringes possesses near zero dead volume, high precision
- Covered sample collector tray protects samples from dust and contamination, prevents evaporation
- Interactive touch screen Aids functioning, increases convenience
- Increased protocol storage space, number of users and access levels increases compliance,eases setup
- Biometric login increases compliance
- Electronic logbook and audit trail provides 21 CFR Part 11 compliance, eases regulatory burden
Specifications :
| Model | DermaX-14 |
| No. of stations | 14 |
| Temperature | 20 - 45°C |
| Heater | 200W |
| Control accuracy | ± 1.0°C |
| RPM | 200 - 1000 |
| RPM accuracy | ± 2 RPM |
| Cell type | Small, Medium and Large (Clear and amber |
| Cell volume (depending on cell and stirrer type) | 8 - 31mL |
| Dosage volume | 0.25 - 6.3 mL |
| Infinity run | Yes |
| Media changeover | Yes |
| No.of sampling intervals | 18 (9/cell block) |
| Storage Tray | 7 *18 rows (regular HPLC vials |
| Display | multi touch capacitive 7" screen |
| Protocol Storage | 1000 |
| Test Report Storage | 10000 |
| Security | Multilevel with password for 250 users with 10 user programmable role |
| Report Printout | Ethernet, RS – 232 |
| Illumination | D'Light |
| Biometric finger print | Optional |
| Thermal printer | Optional |
| Dimensions (L X W X H) | 880 X 590 X 650 (mm) |
| Weight | 60kg (approx) |
