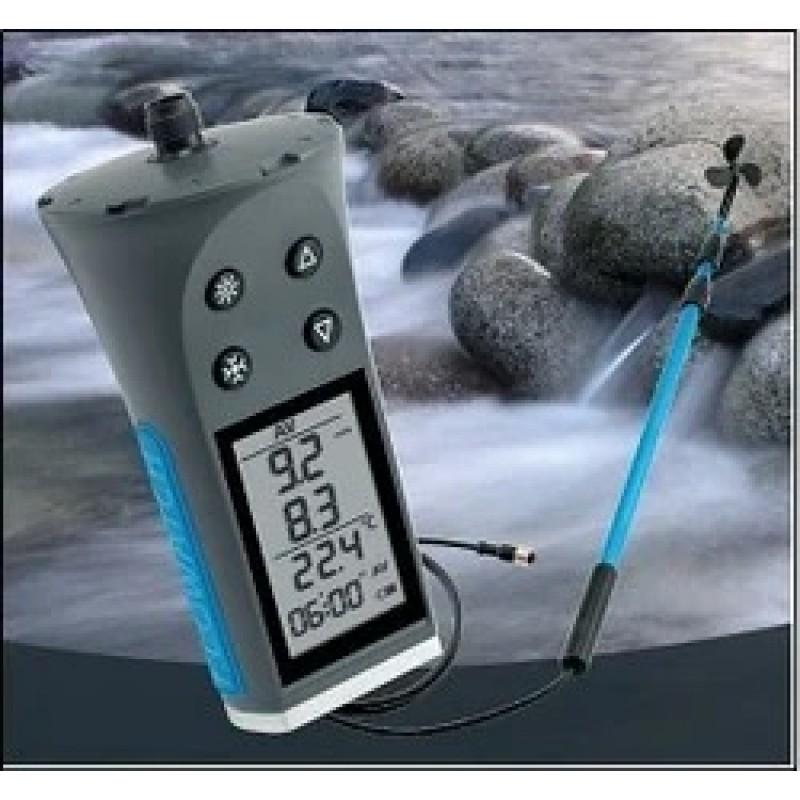

Digital Flow Meter

Ideal for educational use as well as for work in remote locations. The probe folds down into 3 separate sections measuring 16" each. This collapsible design allows you to easily pack the flowmeter in a backpack. Flow measurements can be taken in knots, km/h, mph, and m/s. The meter also takes temperature measurements in either °F or °C, including minimum and maximum temperature and current temperature. The basic unit includes meter, foldable probe, standard flow sensor and carrying case.

Also included is a wind speed impeller which allows you to take air velocity and wind chill measurements. To take flow measurements from a bridge or other elevated location, use the flow sensor with 15 meter cable (purchase seperately). The unit automatically turns itself off after 36 hours. Power: CR2032 Lithium battery (included). Provided with Backlight .

Impellers specifications

• Water impeller: ø 60 mm
• Minimum sensitivity: < 0.3km/h - < 0.1m/s
• Precision: +/-2%
• ‘‘off-axis’’ error: +/-20° / +/-3%

Regular size windspeed impeller: ø 20 mm, hole diameter ø 33 mm.

• Minimum sensitivity: < 3km/h - < 1m/s
• Precision : +/-2%· ‘‘off-axis’’ error: +/-30° / +/-3%
• Operating temperature : -50°C to +100°C

Small size windspeed impeller: ø 12 mm, hole diameter ø 18 mm.

• Minimum sensitivity: < 3km/h - < 1m/s
• Precision: +/-2%
• ‘‘off-axis’’ error: +/-10° / +/-3%
• Withstood temperature: -50°C to +100°C.
