MODEL

DTT-1000

DTT-2000

DTT-3000

DTT-5000

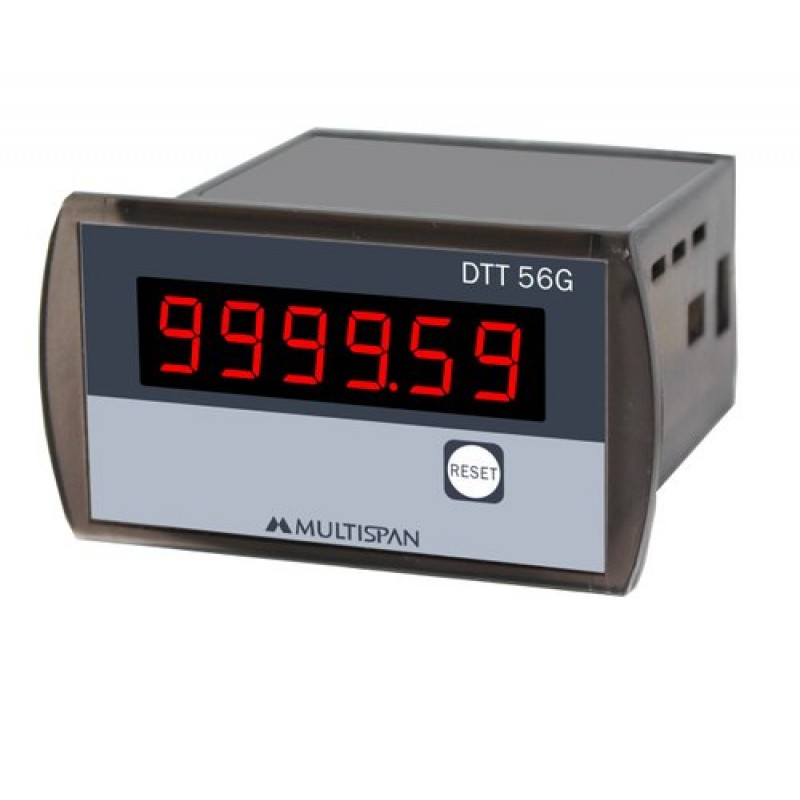

DTT-56G

Dimension (HxWxD) mm

96X96X55

72X72X60

48X96X55

36X72X95

38X62X75

Panel Cutout (mm)

92X92

68X68

44X92

32X68

31X54

Display

Upper : 7 segment, 6 digit, 0.56" RED LED Display

Upper : 7 segment, 6 digit, 0.4" RED LED Display

Upper : 7 segment, 6 digit, 0.56" RED LED Display

Upper : 7 segment, 6 digit, 0.4" RED LED Display

Single : 7 segment, 3 digit, 0.3" RED LED Display

Time Setting Range

99.59.59 hrs/min/sec,9999.59 hr/min,999.59 min/sec,999999 hr/999999 min,999999 sec(configurable)

Start Pulse

Micro switch / Limit switch / Proximity Switch / 230V AC(Factory Set)

Start PulseType

Power ON / Enable / Trigger (Factory Set)

Reset Facility

By Front Keypad

Memory retention

Non-Volatile Memory

Power Supply

230V AC ±10%, 50 Hz (Linear Power Supply)

Enclosure Material

ABS & Polycarbonate

Operating Ambient Temp

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing
